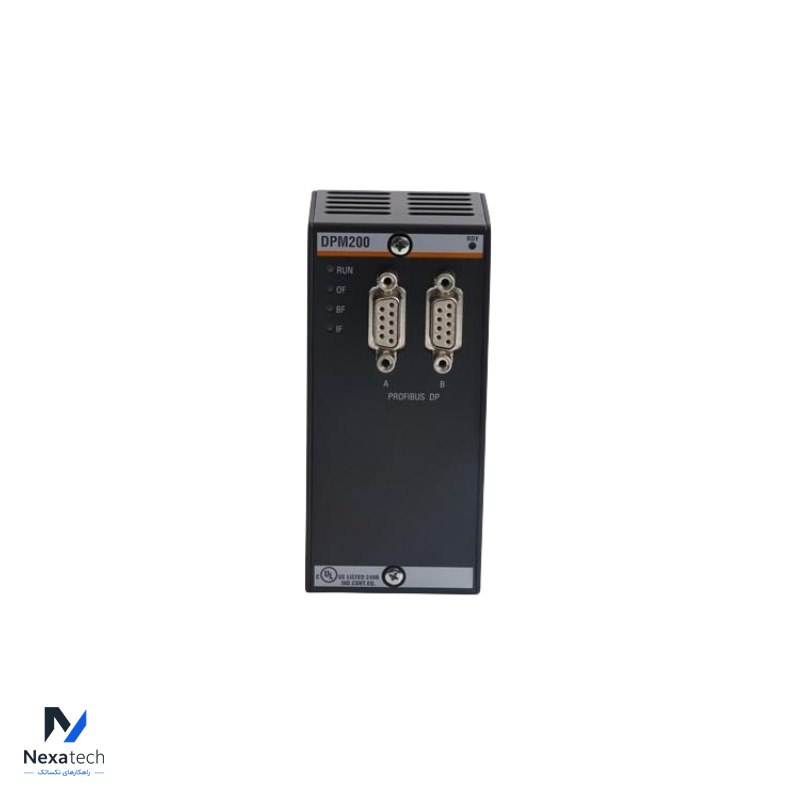

BACHMANN DPM200 PROFIBUS DP Master Module

Name: BACHMANN DPM200 PROFIBUS DP Master Module
Brand: Bachmann
SKU: DPM200
Availability: InStock

پارت‌نامبر: DPM200

توضیحات محصول

PROFIBUS DP Master Module

Specification
Brand Name	BACHMANN	Size Process Image: 8 kB x 16 DPM Maximum Number of Masters: 3 per M200 controller Maximum Number of Slaves: 32 without repeater, 125 with repeater Data Length in the DPM: 732 bytes per slave Current Consumption: 400 mA / 5 V DC Transfer Rate: 9.6 k to 12 MBaud Connection: 2x 9-pin D-sub sockets Galvanic Isolation, Interface to the System: 500 V Operating Temperature: -30 °C to +60 °C Relative Humidity, Operation: 5% to 95% non-condensing Storage Temperature: -40 °C to +85 °C



Model Number	DPM200
Alternate Part Number	DPM200
Condition	100% Original
Dimensions	7.2x3.2x1.3cm
Description	PROFIBUS DP Master Module
Weight	0.5 kg
Warranty	12 Months
