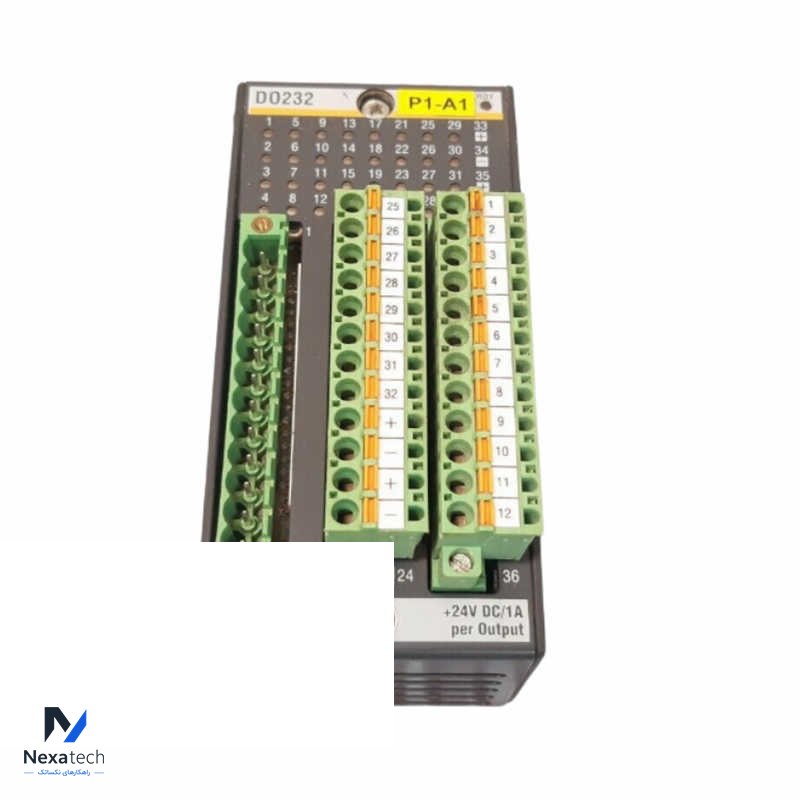

Name: BACHMANN DO232 digital output modules
Brand: Bachmann
SKU: BACHMANN DO232
Availability: InStock

مشخصات فنی

Specification
Brand Name	BACHMANN
Model Number	DO232
Alternate Part Number	DO232
Condition	100% Original
Dimensions	5.5x5.5x12cm
Description	digital output modules
Weight	0.26KG
Warranty	12 Months

The DO216, DO232, and DO232 CC digital output modules are designed for connecting up to 16 or 32 digital signal receivers, such as relays, contactors, signal lamps, and valves, to the M1 controller. These modules provide efficient and reliable control of digital outputs in industrial automation systems.

Key Features:

■ Available with 16 or 32 digital outputs

■ Supports 24 VDC output (DO216, DO232, DO232 CC)

■ 16 outputs with a current rating of 2.5 A or 32 outputs with 1 A

■ Outputs can be parallel connected for increased flexibility

■ Built-in monitoring for short circuits, wire breaks, and overloads

■ Compact design for space-saving installations

■ LED status display for each channel, providing real-time feedback on operation

These features make the DO216, DO232, and DO232 CC modules ideal for controlling a variety of digital devices in demanding industrial environments.
