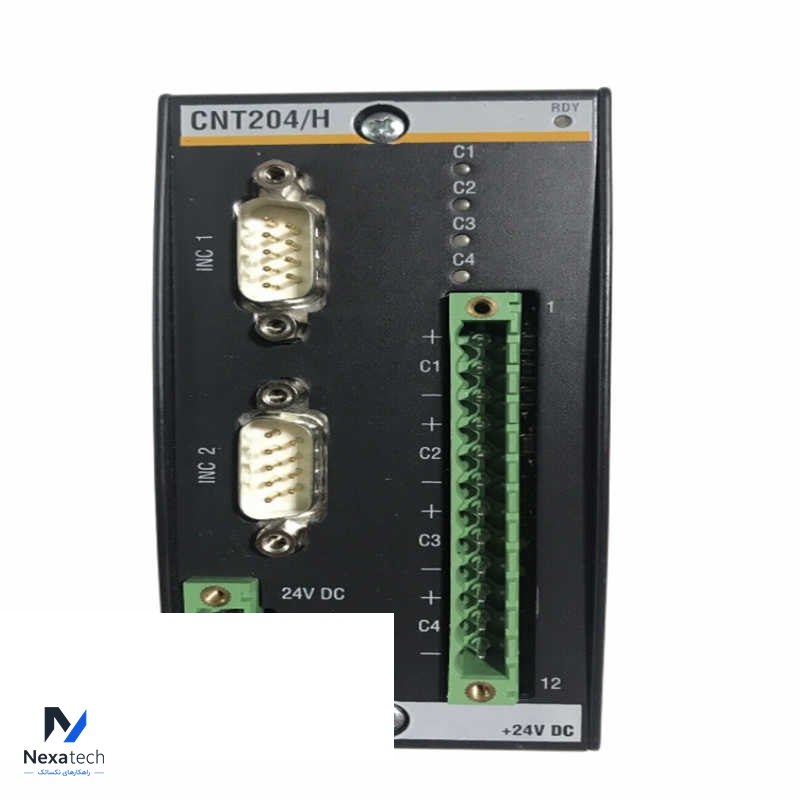

BACHMANN CNT204/H Counter module

The Bachmann CNT204/H Counter Module is designed to perform precise counting, period measurement, and phase shift analysis in industrial automation systems. Below are the key features of this module:

Key Features:
4 Counter Inputs:

Supports single-line pulse generators.
Ideal for applications requiring precise pulse counting, such as speed monitoring or event counting.
Status Indication:

Each counter or initiator input is equipped with an individual green LED indicator, providing a clear and instant status overview.
2 Input Channels for Incremental Encoders:

The module is designed to handle incremental encoders, commonly used in motion control, providing two dedicated input channels.

Integrated Encoder Power Supply:

The encoder power supply is provided directly from the module via the connectors, ensuring convenient power management for connected encoders.
Synchronized Inputs:

The counter inputs can be synchronized, enabling precise alignment and coordination between multiple input signals.
Supply Voltage Monitoring:

The module continuously monitors all supply voltages, ensuring that the power conditions are stable and within the operational limits, improving overall system reliability.
Period Measurement:

High-resolution period measurement with 42 ns resolution, making it suitable for high-speed and high-precision applications.
Differential Measurement:

Capable of measuring the phase shift between C1 and C3 or C2 and C4 inputs with 42 ns resolution, offering precise differential measurement for phase-sensitive applications.

Applications:
Motion Control: Monitoring speed, position, or rotation in industrial motors and actuators.
Pulse Counting: Ideal for event counting, monitoring production rates, or counting input pulses in automation systems.
Position Tracking: Using incremental encoders, the module provides accurate position tracking in conveyor systems or machinery.
Phase Shift Monitoring: Useful in applications where precise synchronization or comparison between two signals is required, such as phase monitoring in rotating equipment.
The CNT204/H module is a versatile and high-performance tool for applications requiring precise counting, pulse monitoring, and synchronization in industrial automation systems. Let me know if you'd like more technical details or specific documentation!
