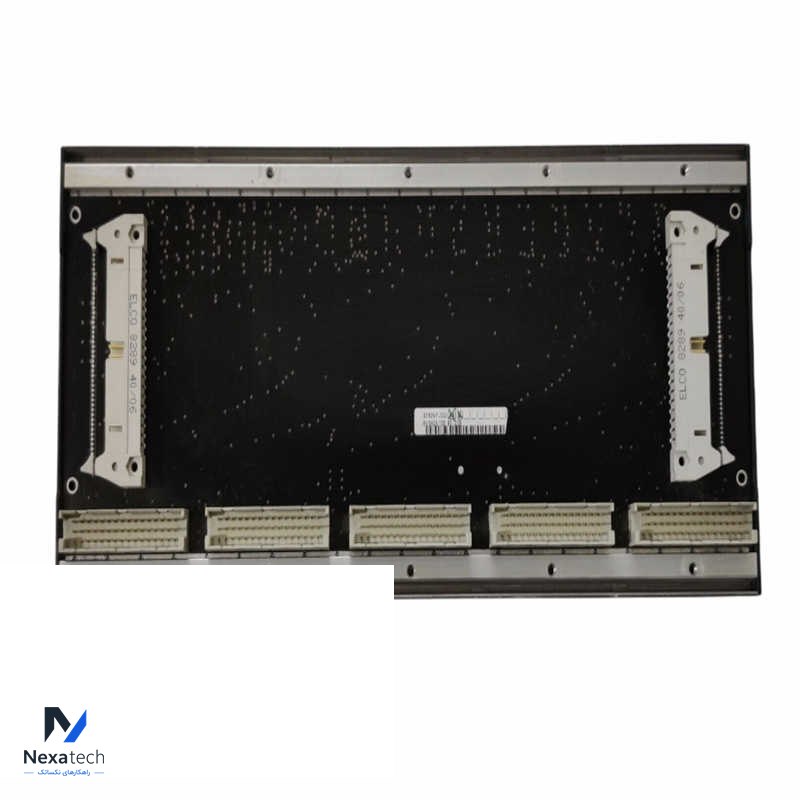

BACHMANN BS205 Backplane - 5-Slot

The Bachmann BS205 is a 5-slot backplane designed for use in the Bachmann M1 automation system. It serves as the central platform for connecting multiple modules such as CPUs, I/O, and communication modules, providing a robust and scalable foundation for industrial automation applications.

Key Features:
5-Slot Configuration:

Supports up to five Bachmann modules, offering flexibility for system expansion and integration of additional control, I/O, and communication modules.
Modular Design:

Part of the Bachmann M1 automation system, the BS205 allows seamless integration with various processor, communication, and I/O modules, ensuring modularity and scalability.

Efficient Bus Communication:

The backplane handles the internal data and power distribution for the connected modules, ensuring efficient and reliable communication between the components.
Power Supply via Backplane:

Power is supplied to all connected modules through the backplane, eliminating the need for separate power wiring for each module.
High Durability and Industrial-grade Construction:

Designed to withstand harsh industrial environments, the backplane is built for durability, ensuring stable operation even in challenging conditions such as high vibration, temperature variations, or dust exposure.
Compact and Space-saving:

The 5-slot design makes it compact and suitable for control cabinets where space optimization is crucial.
LED Indicators for Status Monitoring:

The backplane may include LED indicators for system status, providing quick visual feedback about the overall system health and connections.

Technical Specifications:
Number of Slots: 5
Compatible Modules: Supports the entire range of Bachmann M1 system modules, including processors, communication interfaces, I/O modules, and power supplies.
Operating Temperature: Suitable for industrial temperatures (e.g., -20°C to +60°C, though exact ranges may vary based on installation).
Power Supply: Power is distributed through the backplane to all connected modules.
Dimensions: Compact form factor for easy installation in automation control cabinets (specific dimensions depend on the model).

Applications:
Industrial Automation: Used in various industries like manufacturing, energy, and transportation to create scalable automation systems.
Process Control: Ideal for applications requiring real-time control, signal processing, and data acquisition in large or small systems.
Machine Building: Suitable for complex machinery requiring modular and flexible control systems.
The BS205 backplane is essential for building expandable and highly reliable automation systems, providing the core infrastructure for connecting and powering various modules.
