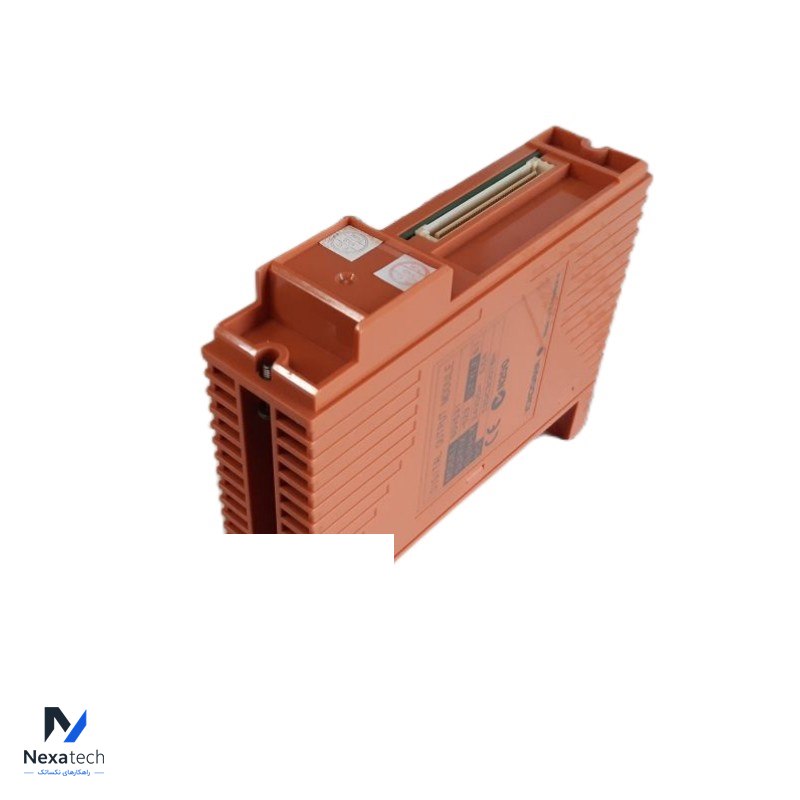

YOKOGAWA SDV531-S23 S1 DIGITAL OUTPUT MODULE

The YOKOGAWA SDV531-S23 S1 is a digital output module designed for use in Yokogawa’s control systems. Here’s a detailed overview:

YOKOGAWA SDV531-S23 S1 Digital Output Module
Overview:
The SDV531-S23 S1 is a digital output module used to control various devices within a control system. It is typically part of Yokogawa's CENTUM VP and other DCS systems.

Key Features:
Output Channels: Provides multiple digital output channels to control external devices.
Output Type: Typically includes relay or transistor outputs, depending on the configuration.
Isolation: Channels are electrically isolated to prevent interference and ensure reliable operation.
Communication Interface: Interfaces with the control system through a standard communication bus.

Specifications:
Number of Outputs: Usually has 8 or 16 channels, but verify with the specific module.
Output Type: Can be relay-type (dry contact) or transistor-type (sinking or sourcing).
Output Voltage/Current: Rated for specific voltage and current levels, such as 24V DC or 115V AC, with maximum current ratings (e.g., 1A per channel).
Isolation: Channels often feature isolation to protect against electrical noise and faults.
Mounting Type: DIN rail mounting for standard installation in control cabinets.
Operating Temperature Range: Designed to operate within a specific temperature range, typically 0°C to 60°C.
Applications:
Process Control: Used to control actuators, solenoids, and other devices in industrial processes.
Automation Systems: Integral to automation systems for switching and controlling external equipment.
Ordering Information:
Model Number: SDV531-S23 S1
Part Number: Refer to the manufacturer’s catalog for specific ordering information and options.
