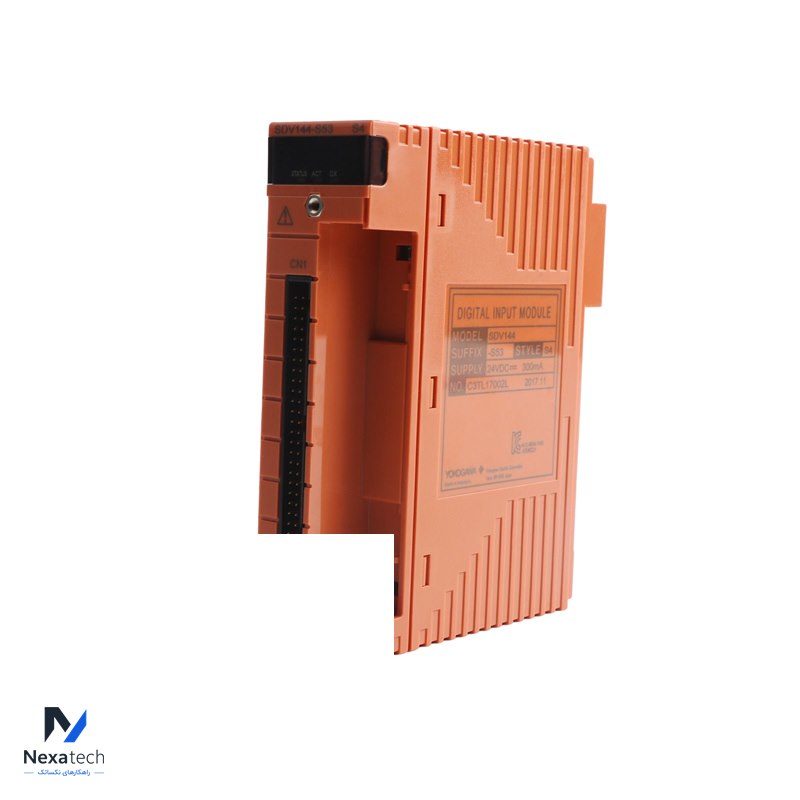

YOKOGAWA SDV144-S53 Digital Input Module (16-channel, 24 V DC, module isolation)
توضیحات محصول
مشخصات فنی
| Brand Name: | YOKOGAWA | ||
| Model Number: | SDV144-S53 | ||
| Alternate Part Number | SDV144-S53 | ||
| Condition: | 100% Original | ||
| Dimensions | 3.2cm*10.7cm*13cm | Weight | 0.36kg |
| Description | Digital Input Module | Warranty: | 12 Months |
| | | | |
Here are the specifications for the YOKOGAWA SDV144-S53 Digital Input Module in table format:
| Specification | Details |
| Model | SDV144-S53 |
| Type | Digital Input Module |
| Number of Inputs | 16-channel, module isolation |
| Input Signal | No-voltage contact |
| Input Signal (ON) | 1 kΩ maximum |
| Input Signal (OFF) | 100 kΩ minimum |
| Input Current | 6 mA ± 20% (External power supply, 24 V DC at 0 Ω input) |
| Contact Rating | 24 V DC +20% / -10%, 10 mA or greater |
| External Power Supply | 24 V DC +20% / -10%, Current capacity: 200 mA |
| Instantaneous Maximum Permissible Input Voltage | 30.0 V DC |
| Input Response Time | 40 ms maximum |
| Withstand Voltage | 2 kV AC between input signal and system for 1 minute, 16-input line collectively connected |
| Current Consumption (5 V DC) | 290 mA maximum |
| Current Consumption (24 V DC) | 140 mA maximum |
| Weight | Approx. 0.36 kg (Pressure clamp terminal block or MIL cable) |
| Weight | Approx. 0.41 kg (With signal cable interface adapter) |
