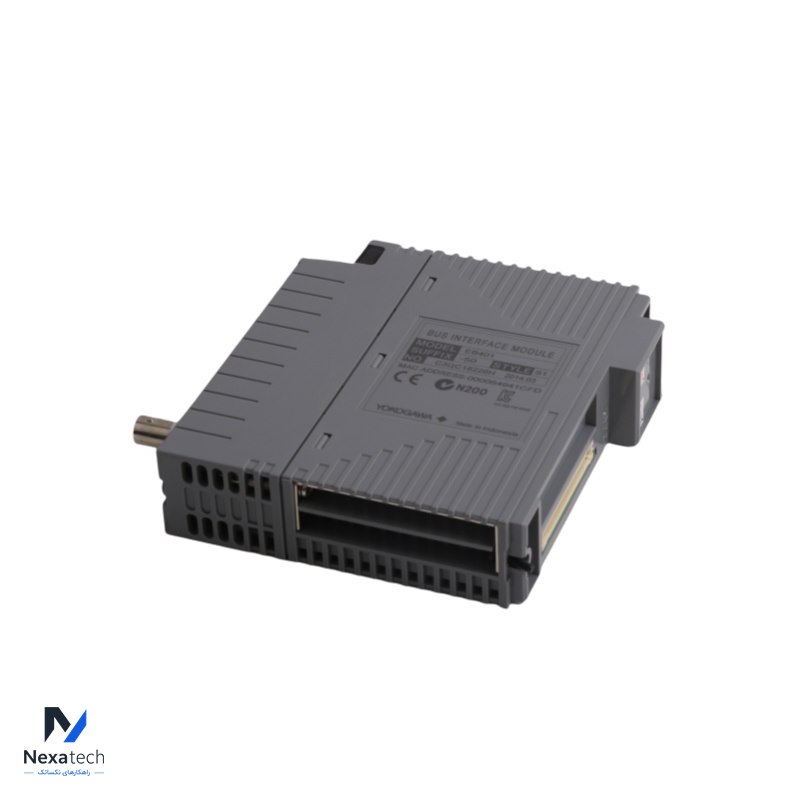

YOKOGAWA EB401-50 S1 ER Bus Interface Master Module

The YOKOGAWA EB401-50 S1 ER Bus Interface Master Module is used for communication between Yokogawa's field control stations and other devices over the ER (Enhanced Remote) bus network. Here’s a detailed look at its features and specifications:

Features:
Master Module Function: Manages communication and data exchange between the ER bus network and the field control stations.
Communication Protocol: Supports Yokogawa's proprietary ER bus protocol for reliable and efficient data transmission.
Integration: Facilitates seamless integration with other Yokogawa field devices and controllers.
High Reliability: Designed for industrial environments, offering robust performance and reliability.

Specifications:
Model: EB401-50 S1
Type: ER Bus Interface Master Module
Bus Compatibility: Designed to work with Yokogawa’s ER bus network.
Communication Channels: Typically includes multiple channels for connecting and managing devices.
Power Supply: Operates within a specified voltage range, commonly 24V DC.
Operating Temperature: Generally ranges from 0°C to 60°C, depending on the environment.
Mounting: Usually mounted on a DIN rail or similar industrial mounting system.
Dimensions: Compact design to fit in standard control panels.

Applications:
Process Control: Used in process control systems to interface with various field devices and sensors.
Data Acquisition: Facilitates data acquisition from distributed field devices for monitoring and control.
Automation Systems: Integrates with automation systems to enhance system efficiency and performance.
