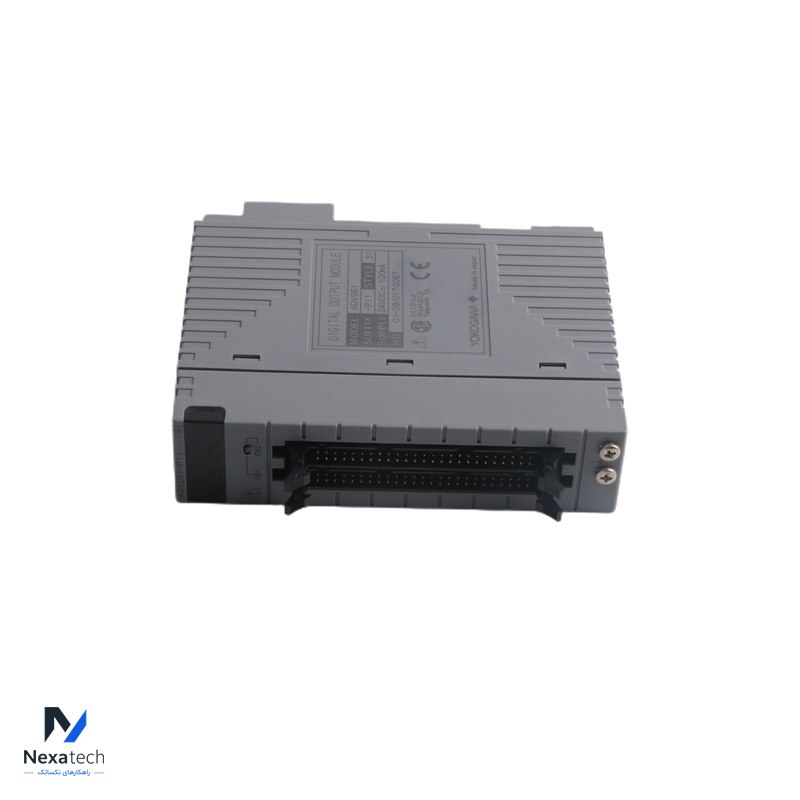

YOKOGAWA ADV561-P11 S1 Digital Output Module

The Yokogawa ADV561-P11 S1 is a Digital Output Module designed for use in Yokogawa's CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). This module provides the capability to output digital signals to control various external devices and systems based on commands from the DCS.

Key Features of Yokogawa ADV561-P11 S1 Digital Output Module:
Digital Output Functionality:

The ADV561-P11 S1 module offers digital output channels that can be used to control external devices such as actuators, alarms, and other equipment.
Digital outputs are typically used for on/off control or to signal various status conditions.
High-Channel Density:

The module generally supports 16 digital output channels, allowing multiple devices to be controlled from a single module.
This high channel density is beneficial for managing numerous digital outputs efficiently in a compact space.

Output Ratings and Types:

Each digital output is usually rated to handle 24 V DC signals, providing flexibility for controlling various types of external devices.
The module supports both sinking and sourcing output configurations, accommodating different application requirements.
High Reliability and Durability:

Designed for reliable operation and long-term durability in demanding industrial environments.
Ensures consistent performance for critical digital control applications.

Technical Specifications:
Channels: Typically supports 16 digital output channels.
Output Type: 24 V DC digital outputs.
Output Configuration: Supports both sinking and sourcing configurations.
Diagnostics: Built-in self-diagnostics for monitoring channel status.
Fail-Safe: Fail-safe features for maintaining safe operation during faults.
Hot-Swappable: Can be replaced without stopping the system.
Operating Temperature: Typically operates within the standard industrial range of 0°C to 55°C.
The Yokogawa ADV561-P11 S1 Digital Output Module provides essential digital output capabilities for controlling external devices and systems in process automation environments. Its high channel density, reliability, and advanced features make it a key component in Yokogawa’s control systems.
