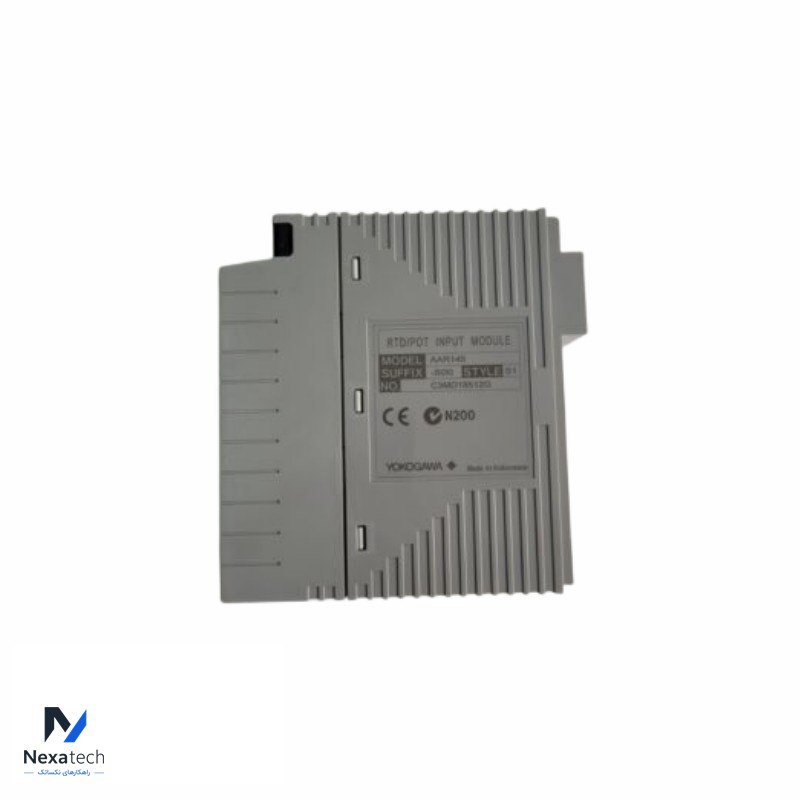

YOKOGAWA AAR145-S00 S1 RTD/POT INPUT MODULE

The Yokogawa AAR145-S00 S1 is an RTD/POT Input Module designed for use in Yokogawa's CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). This module is specifically intended for interfacing with Resistance Temperature Detectors (RTDs) and potentiometers (POTs), providing precise measurement of temperature and resistance in various industrial applications.

Key Features of Yokogawa AAR145-S00 S1 RTD/POT Input Module:
RTD and Potentiometer Input:

The AAR145-S00 S1 module is designed to accept inputs from RTDs (Resistance Temperature Detectors) and potentiometers, making it suitable for measuring temperature and resistance in various process control applications.
It supports multiple RTD types, such as Pt100, Pt1000, and other common RTD configurations, providing flexibility in sensor selection.

High-Channel Density:

The module typically supports 16 input channels, allowing for a large number of RTD or potentiometer sensors to be connected to a single module.
This high channel density helps in managing multiple sensors efficiently within a compact space.
High Accuracy and Precision:

Ensures high accuracy and precision in the measurement of temperature and resistance, which is crucial for applications that require accurate data for process control and monitoring.
Provides stable and reliable performance in varying industrial conditions.

Technical Specifications:
Channels: Typically supports 16 input channels.
Input Types: Designed for RTD and potentiometer inputs.
RTD Types: Supports common RTD configurations like Pt100, Pt1000, and others.
Accuracy: High accuracy for temperature and resistance measurements.
Isolation: Channel-to-channel isolation to prevent interference.
Diagnostics: Built-in self-diagnostic features for fault detection and system health monitoring.
Fail-Safe: Fail-safe features to ensure safe operation during faults.
Hot-Swappable: Can be replaced without stopping the system.
Operating Temperature: Typically operates within the standard industrial range of 0°C to 55°C.
The Yokogawa AAR145-S00 S1 RTD/POT Input Module is designed for precise and reliable measurement of temperature and resistance in industrial process control systems. Its high accuracy, flexibility, and advanced features make it a valuable component for monitoring and controlling process variables.
