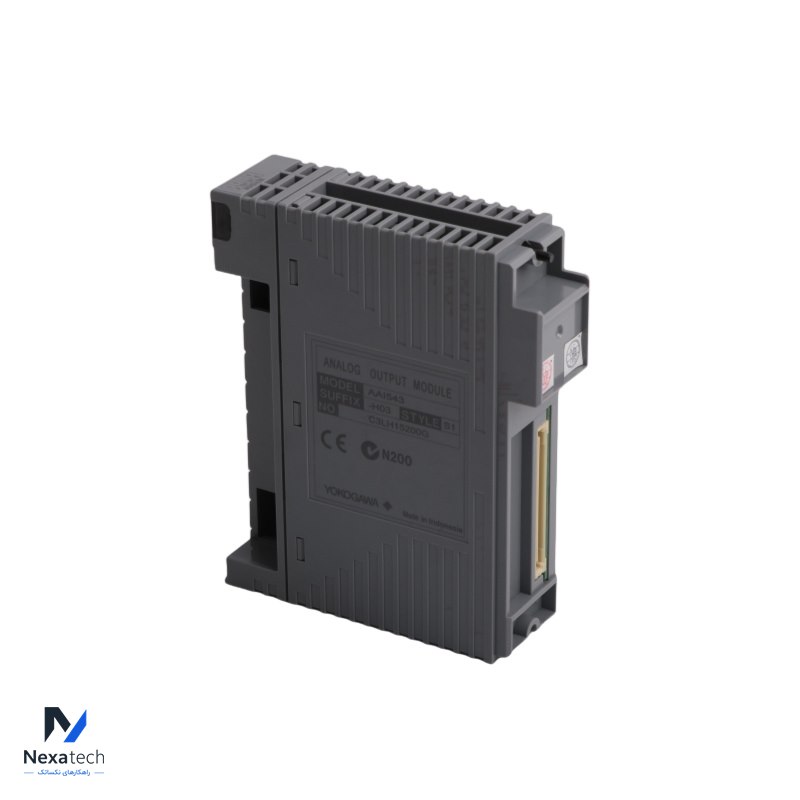

YOKOGAWA AAI543-H03 S1 Analog Output Module

The Yokogawa AAI543-H03 S1 is an Analog Output Module used in Yokogawa's CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). It provides high-precision analog signal output for controlling actuators, valves, and other field devices, enabling smooth and accurate process control.

Key Features of the Yokogawa AAI543-H03 S1 Analog Output Module:
Analog Output Channels:

The AAI543-H03 S1 module typically provides 16 analog output channels.
Each output channel transmits a 4-20 mA or 1-5 V DC signal to control various field devices such as control valves, actuators, or other instrumentation.

High Precision:

The module ensures high accuracy and reliability in output signals, essential for critical process control tasks.
Isolation:

The module features channel-to-channel isolation to prevent interference between channels, improving signal integrity and protection.
Self-Diagnostics:

Equipped with self-diagnostic functions that monitor internal operations and detect faults or errors in real time, contributing to overall system reliability.
Hot-Swappable:

The AAI543-H03 S1 supports hot-swapping, allowing the module to be replaced without stopping system operation, minimizing downtime and improving maintainability.
Compact and Modular Design:

It fits seamlessly into Yokogawa’s control system racks, and its modular design allows for easy expansion or replacement.
Redundancy Support:

The module can be used in redundant configurations, ensuring high availability and reliability in critical applications.

Technical Specifications:
Signal Type: 4-20 mA or 1-5 V DC analog output.
Channels: 16 isolated output channels.
Isolation: Channel-to-channel and system isolation.
Accuracy: High accuracy output for precise control.
Diagnostics: Built-in self-diagnostics and monitoring.
Operating Temperature: Suitable for industrial environments, with a standard operating range of 0°C to 55°C.
The Yokogawa AAI543-H03 S1 Analog Output Module is designed for critical process control where reliability and accuracy are paramount. It offers seamless integration with Yokogawa's control systems and is ideal for controlling various field devices in demanding industrial applications.
