YOKOGAWA AAI143-S03 S1 Analog Input Module

The YOKOGAWA AAI143-S03 S1 is an analog input module used in Yokogawa’s control systems. Here’s a detailed overview:

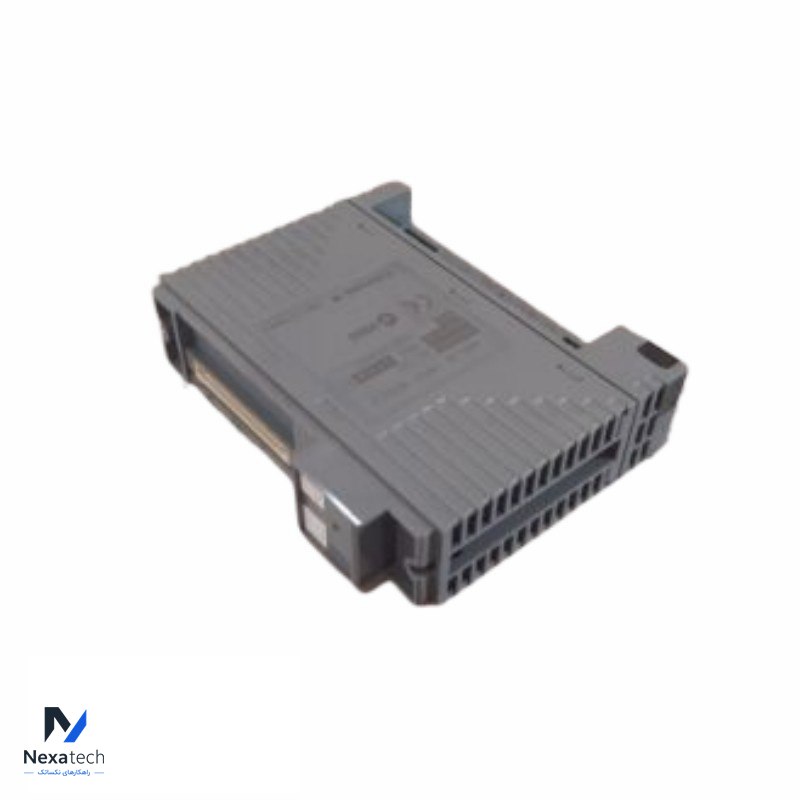

YOKOGAWA AAI143-S03 S1 Analog Input Module
Overview:
The AAI143-S03 S1 module is designed to interface with analog sensors and transmitters, converting their signals into digital data that can be processed by a control system. It is part of Yokogawa’s CENTUM VP and other process control systems.

Key Features:
Input Channels: Provides multiple analog input channels for connecting various field devices.
Input Type: Supports a range of input types, such as 4-20 mA current, 0-10 V voltage, or thermocouples, depending on the configuration.
Signal Conversion: Converts analog signals into digital data for use in the control system.
Isolation: Channels are typically electrically isolated to prevent interference and ensure accuracy.

Specifications:
Number of Inputs: Generally, the module supports 8 or 16 analog inputs, but check the specific model for exact numbers.
Input Range: Configurable for different signal ranges, such as 4-20 mA, 0-10 V, or various thermocouple types.
Resolution: High-resolution data acquisition to ensure precise measurements.
Accuracy: High accuracy in converting analog signals to digital data.
Isolation: Electrical isolation between channels to protect against noise and ensure data integrity.
Mounting Type: DIN rail mounting for ease of installation in control cabinets.
Operating Temperature Range: Typically operates within 0°C to 60°C.

Applications:
Process Monitoring: Used to monitor and control processes by interfacing with analog sensors and transmitters.
Data Acquisition: Collects analog data from various sources for processing and analysis.
Ordering Information:
Model Number: AAI143-S03 S1
Part Number: Refer to the manufacturer’s catalog or documentation for specific ordering information and any additional options.
