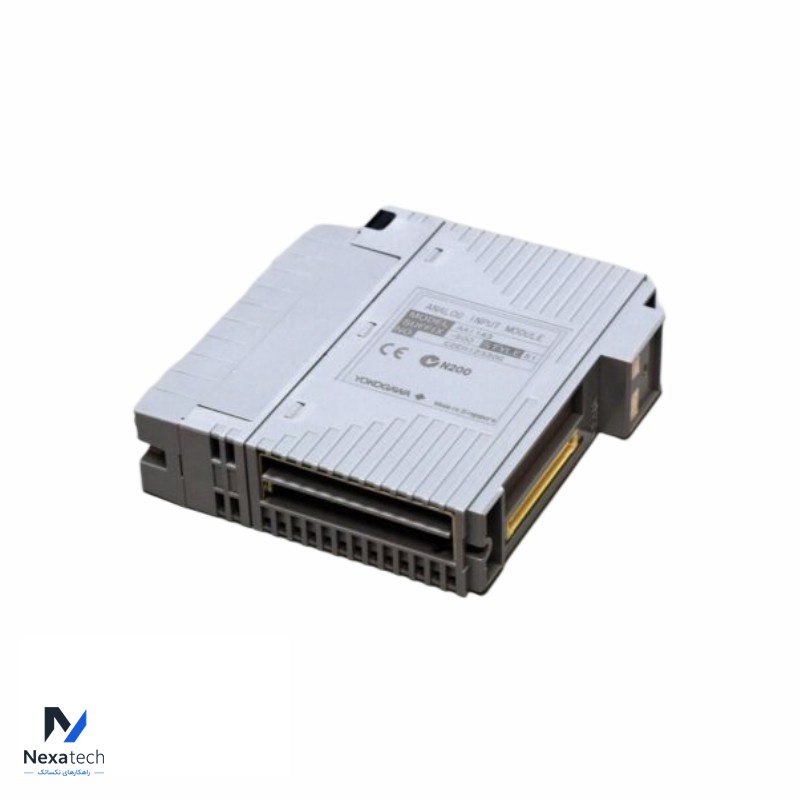

YOKOGAWA AAI143-S00 S1 Analog Input Module (Current Input)
توضیحات محصول
مشخصات فنی
| Brand Name: | YOKOGAWA | ||
| Model Number: | AAI143-S00 S1 | ||
| Alternate Part Number | AAI143-S00 S1 | ||
| Condition: | 100% Original | ||
| Dimensions | 3.2x12.3x13cm | Weight | 0.3kg |
| Description | Analog Input Module (Current Input) | Warranty: | 12 Months |
| | | | |
The AAI143-S00 S1 is designed to process analog current input signals and convert them into digital data for control and monitoring systems. It is typically used in distributed control systems (DCS) for industrial automation.
| Specification | Details |
| Model | AAI143 (*1) |
| Number of input channels | 16, isolated |
| Input signal | 4 to 20 mA |
| Allowable input current | 24 mA |
| Withstanding voltage | Between input and system: 1500 V AC, for 1 minute (*4) |
| Input resistance (Power ON) | 270 Ω (20 mA) to 350 Ω (4 mA) (*2) |
| Input resistance (Power OFF) | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Data update period | 10 ms |
| Transmitter power supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) (output current limit: 25 mA) (*5) |
| Setting of 2-wire or 4-wire transmitter | For each channel by setting pin |
| Drift due to ambient temperature change | ±16 µA/10 ˚C |
| Maximum current consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Weight | 0.3 kg |
| External communication | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| HART communication | Available (*3) |
