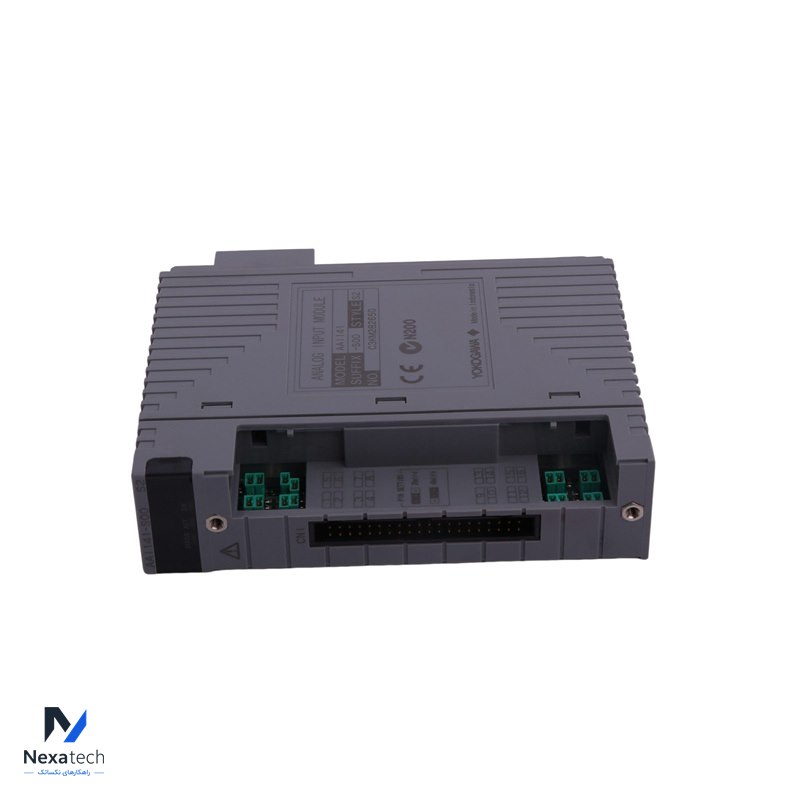

YOKOGAWA AAI141-S00 S2 Analog input module

The YOKOGAWA AAI141-S00 S2 Analog Input Module is used in Yokogawa's control systems to interface with various analog input signals. Here’s a detailed overview:

YOKOGAWA AAI141-S00 S2 Analog Input Module
Overview:
The AAI141-S00 S2 module is designed to receive and process analog signals from field instruments and sensors. It converts these analog signals into a format that can be used by the control system for monitoring and control purposes.

Key Features:
Input Channels: Provides multiple channels for connecting analog sensors and transmitters.
Signal Types: Supports various input types, including 4-20 mA current, 0-10 V voltage, and possibly others depending on the configuration.
Signal Conditioning: Includes internal signal conditioning to ensure accurate data acquisition.
Isolation: Channels are electrically isolated to prevent interference and ensure reliable operation.

Specifications:
Number of Inputs: Typically supports 8 or 16 analog input channels, but check the specific model for exact details.
Input Ranges: Configurable for different signal ranges such as 4-20 mA, 0-10 V, and other common analog signal types.
Resolution: High resolution for precise signal measurement.
Accuracy: Designed for high accuracy in converting analog signals to digital data.
Isolation: Provides electrical isolation between channels to reduce noise and protect the system.
Mounting Type: DIN rail or similar standard mounting for easy installation in control panels.
Operating Temperature Range: Generally operates within a standard range, such as 0°C to 60°C.

Applications:
Process Monitoring: Used to monitor and control industrial processes by interfacing with analog sensors.
Data Acquisition: Collects and processes analog data from various field devices for system control and analysis.
Ordering Information:
Model Number: AAI141-S00 S2
Part Number: For exact part numbers and configurations, refer to Yokogawa’s catalog or documentation.
