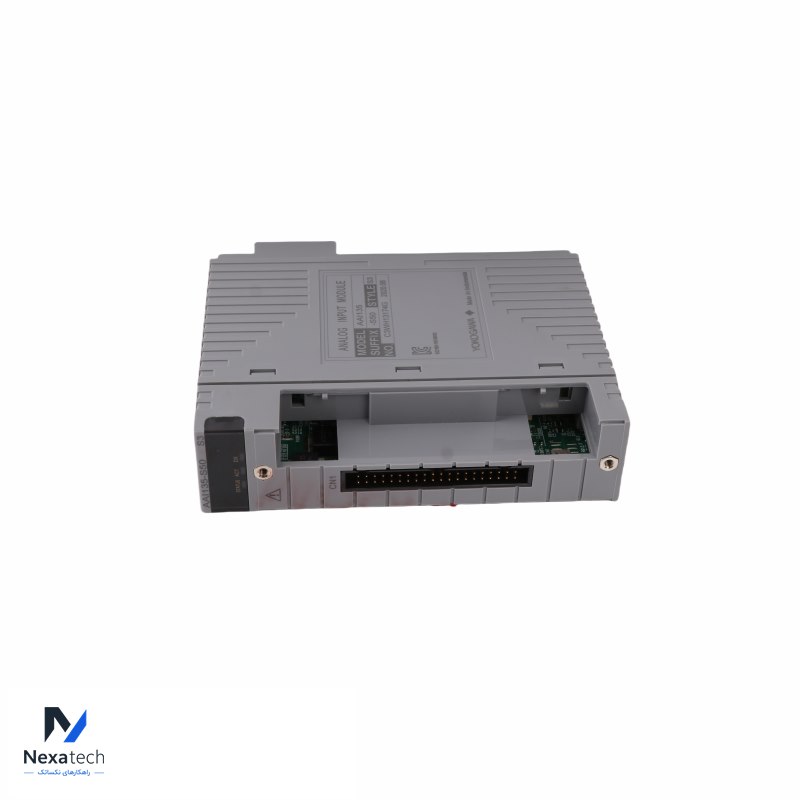

YOKOGAWA AAI135-S50 S3 Analog I/O Module

The Yokogawa AAI135-S50 S3 is an Analog Input/Output (I/O) Module used in Yokogawa's CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). This module provides flexible, high-precision analog signal processing, supporting both input and output functionalities for various field devices like sensors, actuators, and controllers.

Key Features of Yokogawa AAI135-S50 S3 Analog I/O Module:
Analog Input/Output Capabilities:

The AAI135-S50 S3 module typically supports 8 channels for both analog inputs and outputs, offering flexibility in handling different types of field signals.
The module can process signals such as 4-20 mA current or 1-5 V DC voltage for both input and output.

High Accuracy:

Ensures high-precision signal measurement and control, critical for process automation and regulation tasks.
Suitable for applications requiring precise monitoring and output control.
Channel-to-Channel Isolation:

Provides isolation between channels, reducing interference and improving signal integrity, which is especially important in environments with electrical noise.
Self-Diagnostic Features:

Includes built-in self-diagnostic functions that constantly monitor the health and status of the module.
Diagnostics include detection of signal abnormalities, communication issues, and internal component failures, helping ensure reliable operations.

Technical Specifications:
Input/Output Channels: 8 channels for both analog inputs and outputs.
Signal Type:
Input: 4-20 mA current or 1-5 V DC voltage.
Output: 4-20 mA current or 1-5 V DC voltage.
Accuracy: High-precision analog signal processing.
Isolation: Channel-to-channel isolation for improved signal quality.
Operating Temperature: Typically 0°C to 55°C, suitable for industrial environments.
Diagnostics: Self-monitoring for fault detection and maintenance alerts.
The Yokogawa AAI135-S50 S3 Analog I/O Module is well-suited for applications requiring both input monitoring and output control. Its flexibility, high accuracy, and reliability make it a key component in process automation and control systems.
