YOKOGAW ADV161-P50 S2 Digital Input Module

The YOKOGAWA ADV161-P50 S2 is a digital input module used in Yokogawa’s control systems, such as the CENTUM VP series. It is designed to interface with digital signals from various field devices, providing reliable and accurate digital input for process control and monitoring.

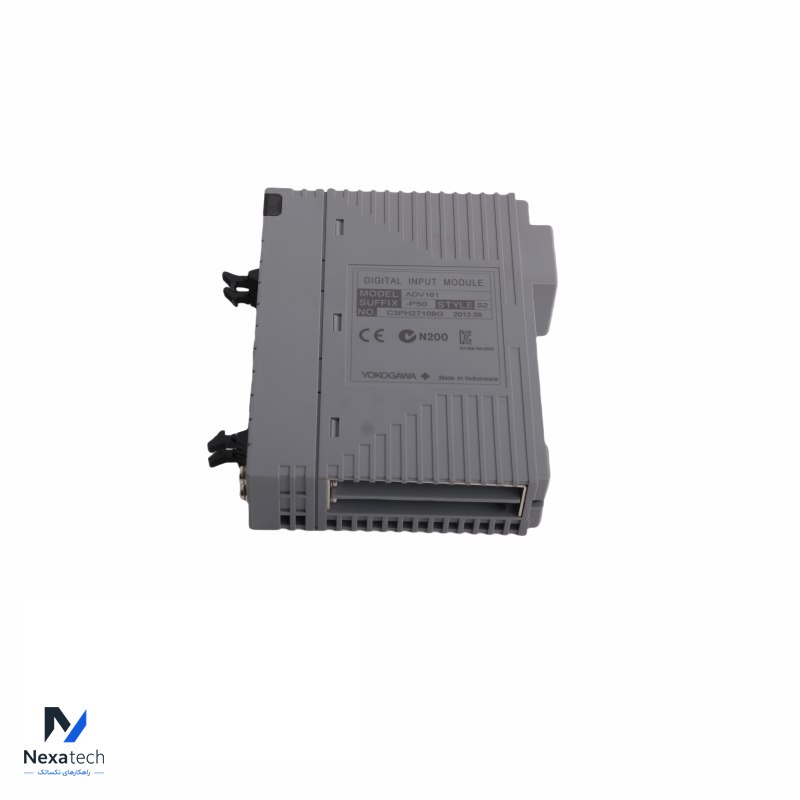

YOKOGAWA ADV161-P50 S2 Digital Input Module
Overview:
The ADV161-P50 S2 module is used to collect and process digital signals from field devices. It converts these signals into data that can be processed by the control system, allowing for integration with various digital inputs.

Key Features:
Digital Inputs: Provides multiple digital input channels for interfacing with on/off signals from field devices.
High Reliability: Designed for high reliability and accuracy in digital signal processing.
Isolation: Includes electrical isolation to protect the module and the control system from electrical noise and interference.
Modular Design: Part of a modular system, allowing for flexible configuration and expansion.

Specifications:
Number of Channels: Typically supports 16 digital input channels.
Input Type: Designed to accept digital signals, such as discrete on/off signals.
Input Voltage Range: Supports various voltage levels, such as 24 V DC, depending on the specific module configuration.
Signal Type: Capable of handling different types of digital signals (sinking or sourcing inputs).
Isolation: Electrical isolation between channels to ensure signal integrity and prevent interference.
Mounting Type: Generally mounted in standard control racks or panels.
Operating Temperature Range: Typically operates within an industrial temperature range, such as 0°C to 60°C.

Applications:
Process Control: Interfaces with digital devices and sensors to collect on/off signals for process monitoring and control.
Automation Systems: Integrates with control systems to provide digital input for various automation tasks.
Data Acquisition: Collects digital signals from field devices for analysis and processing in industrial environments.
Ordering Information:
Model Number: ADV161-P50 S2
Part Number: Check Yokogawa’s catalog or documentation for specific part numbers and ordering details.
