YOKOGAW AAR145-S03 S1 RTD/POT INPUT MODULE

The YOKOGAWA AAR145-S03 S1 is an RTD/POT (Resistance Temperature Detector/Potentiometer) input module designed for use in Yokogawa’s control systems, such as the CENTUM VP series. It is specialized for handling inputs from RTDs and potentiometers, which are commonly used for temperature and position measurement.

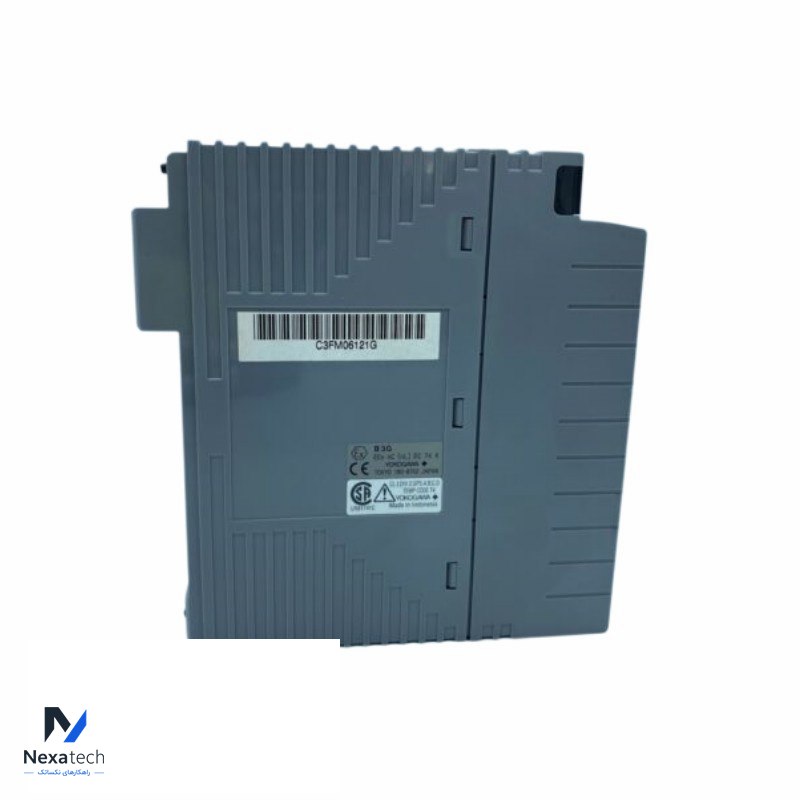

YOKOGAWA AAR145-S03 S1 RTD/POT Input Module
Overview:
The AAR145-S03 S1 module is used to interface with RTDs and potentiometers, converting their resistance-based measurements into signals that can be processed by the control system. It provides accurate and reliable measurement of temperature or position data.

Key Features:
RTD and Potentiometer Inputs: Supports connections to RTDs and potentiometers for temperature and position measurement.
High Accuracy: Designed to offer precise measurement and reliable performance.
Signal Conditioning: Includes internal signal conditioning to enhance measurement accuracy and stability.

Isolation: Provides electrical isolation to protect the module and the control system from electrical noise and interference.

Specifications:
Number of Channels: Typically supports 8 input channels for RTD or potentiometer connections.
Input Types: Compatible with various RTD types (such as PT100, PT1000) and potentiometers.
Measurement Range: Capable of measuring a wide range of temperatures or positions depending on the RTD or potentiometer specifications.
Resolution: High resolution for accurate data acquisition.
Accuracy: Provides high accuracy in signal measurement and processing.
Isolation: Electrical isolation between channels to ensure signal integrity and prevent interference.
Mounting Type: Designed for installation in standard control racks or panels.
Operating Temperature Range: Typically operates within an industrial temperature range, such as 0°C to 60°C.

Applications:
Temperature Measurement: Used for accurate temperature measurement in process control and monitoring systems.
Position Measurement: Interfaces with potentiometers for position sensing in automation and control systems.
Process Control: Integrates with Yokogawa’s control systems to provide real-time data for process control and monitoring.
Ordering Information:
Model Number: AAR145-S03 S1
Part Number: Refer to Yokogawa’s catalog or documentation for specific part numbers and ordering details.
