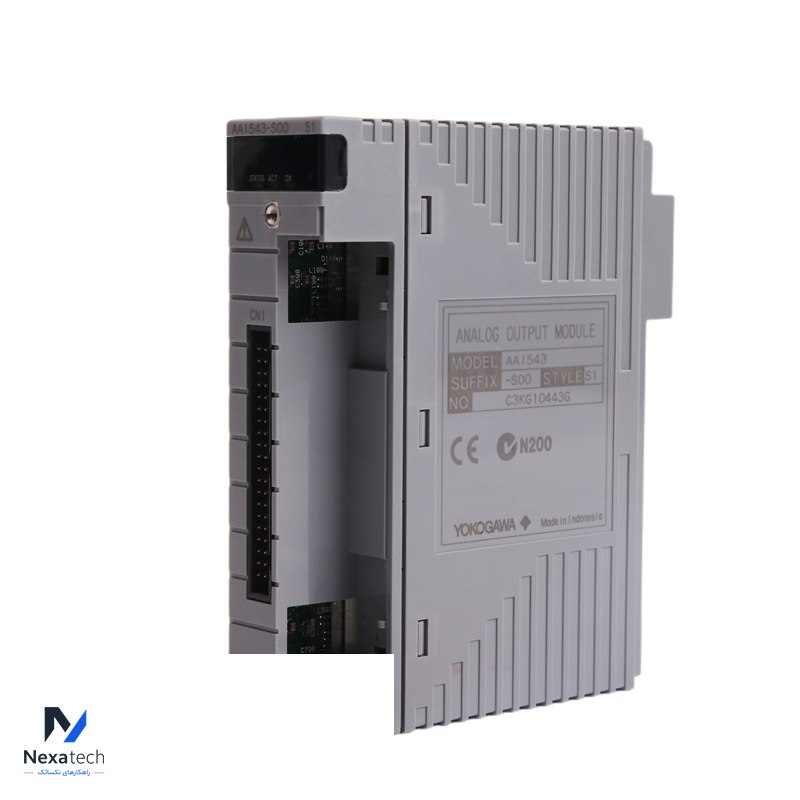

YOKOGAWA AAI543-S00 S1 Analog Output Module
Overview:
The AAI543-S00 S1 module is designed for providing analog output signals from a control system to external devices. It is used to transmit control signals to actuators, valves, and other field devices that require analog input.

Key Features:
Analog Outputs: Provides multiple analog output channels for controlling various field devices.
Signal Types: Capable of handling different types of analog signals such as 4-20 mA or 0-10 V, depending on configuration.
High Accuracy: Designed for high precision and stability in output signal generation.
Isolation: Includes electrical isolation to prevent interference and ensure signal integrity.

Specifications:
Number of Channels: Typically provides 4 or 8 analog output channels, depending on the specific module configuration.
Output Range: Supports output ranges such as 4-20 mA, 0-10 V, or other configurable ranges.
Resolution: High resolution for precise control of analog signals.
Accuracy: Designed to deliver accurate and stable output signals.
Isolation: Provides electrical isolation between output channels to protect the control system and ensure reliability.
Mounting Type: Generally mounted in standard control racks or panels.
Operating Temperature Range: Usually operates within an industrial temperature range, such as 0°C to 60°C.

Applications:
Process Control: Interfaces with field devices to provide control signals for process operations.
Automation Systems: Used to control actuators, valves, and other devices in industrial automation systems.
Signal Transmission: Converts digital control signals into analog outputs for external use.
Ordering Information:
Model Number: AAI543-S00 S1
Part Number: Refer to Yokogawa’s catalog or documentation for specific part numbers and ordering details.
