YOKOGAW AAI143-S50 S1 ANALOG INPUT MODULE

The YOKOGAWA AAI143-S50 S1 is an analog input module used in Yokogawa’s control systems, such as the CENTUM VP series. It is designed to interface with various analog sensors and devices, converting their signals into data that can be processed by the control system.

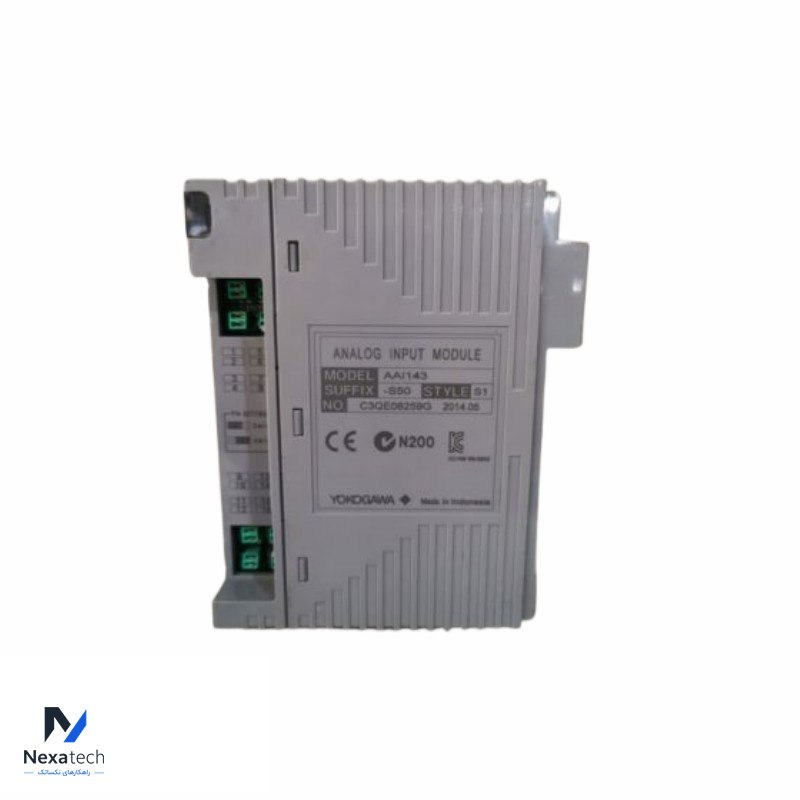

YOKOGAWA AAI143-S50 S1 Analog Input Module
Overview:
The AAI143-S50 S1 module is utilized for collecting and processing analog signals from field devices. It provides accurate data acquisition and signal conditioning to ensure reliable monitoring and control within the control system.

Key Features:
Analog Inputs: Provides multiple analog input channels for interfacing with various sensors and field devices.
Signal Conditioning: Includes internal signal conditioning to enhance accuracy and reliability.
High Accuracy: Designed to deliver precise measurement and signal processing.
Isolation: Features electrical isolation to protect against noise and ensure signal integrity.

Specifications:
Number of Channels: Typically supports 8 analog input channels.
Input Types: Capable of handling various analog input types such as 4-20 mA, 0-10 V, thermocouples, RTDs, etc.
Resolution: High resolution for accurate measurement of analog signals.
Accuracy: High accuracy in signal processing to ensure reliable data.
Isolation: Electrical isolation between channels to prevent interference and ensure signal integrity.
Mounting Type: Designed for installation in standard control racks or panels.
Operating Temperature Range: Typically operates within an industrial temperature range, such as 0°C to 60°C.

Applications:
Process Monitoring: Collects and processes data from analog sensors to monitor process variables.
Automation Systems: Integrates with control systems to provide real-time data for process control.
Data Acquisition: Captures analog signals for analysis and control in industrial environments.
Ordering Information:
Model Number: AAI143-S50 S1
Part Number: Check Yokogawa’s catalog or documentation for specific part numbers and ordering details.
