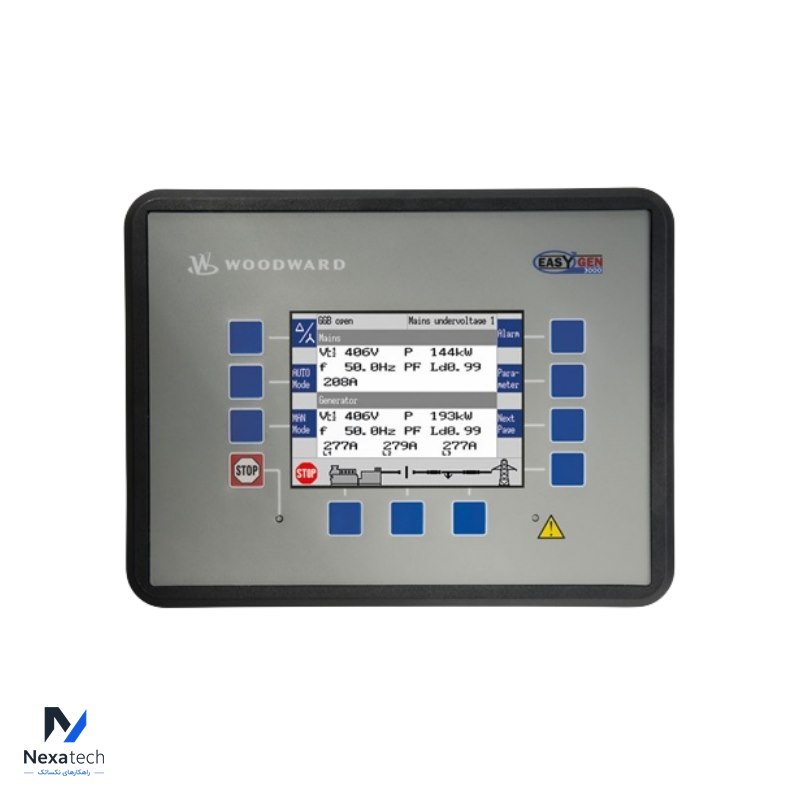

WOODWARD 8440-1934 easYgen-3500 Easygen Generator Control

The Woodward 8440-1934 easYgen-3500 is part of the easYgen-3000 Series of generator control devices, designed for advanced power management and generator control in both single and multi-unit applications. The easYgen-3500 is particularly known for its flexibility, scalability, and comprehensive features, allowing it to handle complex load sharing, protection, and control tasks for generators in a wide variety of applications, including power plants, industrial facilities, and marine environments.

Key Features:
Advanced Generator Control:

The easYgen-3500 offers complete control over both single and multi-unit generator systems, providing features such as automatic start/stop, synchronizing, load sharing, and protection.
It supports up to 32 gensets in island, parallel, or complex network topologies.

Load Sharing and Power Management:

Integrated load sharing capability allows seamless distribution of load across multiple generators, ensuring optimal performance and fuel efficiency.
Supports automatic generator control based on demand, with power factor control and kW/kvar sharing.
Flexible Communication Options:

The easYgen-3500 is equipped with a wide range of communication protocols, including Modbus (RTU and TCP/IP), CANopen, and Ethernet, allowing it to communicate with external devices such as SCADA systems, PLCs, or building management systems.
It also supports remote monitoring and control, providing operators with real-time status updates and the ability to make adjustments from a distance.

Comprehensive Protection Functions:

The module includes a broad range of protective functions, such as over/under voltage, over/under frequency, reverse power, and more.
Protects both the generator and the connected loads from electrical faults, ensuring safe and reliable operation.
Multi-Breaker Management:

The device can manage up to 16 breakers in a system, allowing for control over complex power systems with multiple power sources and load zones.
Scalability and Expandability:

The easYgen-3500 can be expanded to accommodate additional generators and functionalities, making it ideal for growing systems or those with future expansion needs.

Applications:
Power Generation Plants: Used for control and management of gensets in utility or backup power systems.
Industrial Facilities: Ideal for large factories or facilities with multiple generators needing synchronized operation and load management.
Marine Applications: Suitable for shipboard power management, providing efficient control of multiple generator units in marine environments.
Data Centers: Applied in critical infrastructure for seamless power management and generator synchronization.
Technical Specifications:
Model: Woodward 8440-1934 easYgen-3500
Genset Control: Supports up to 32 gensets.
Load Sharing: Integrated active and reactive load sharing across multiple gensets.
Breakers: Capable of controlling up to 16 breakers.
Communication Protocols: Modbus RTU, Modbus TCP/IP, CANopen, Ethernet.
Protection Features: Includes over/under voltage, over/under frequency, reverse power, etc.
Display: Graphical display for real-time data, alarms, and configuration.
