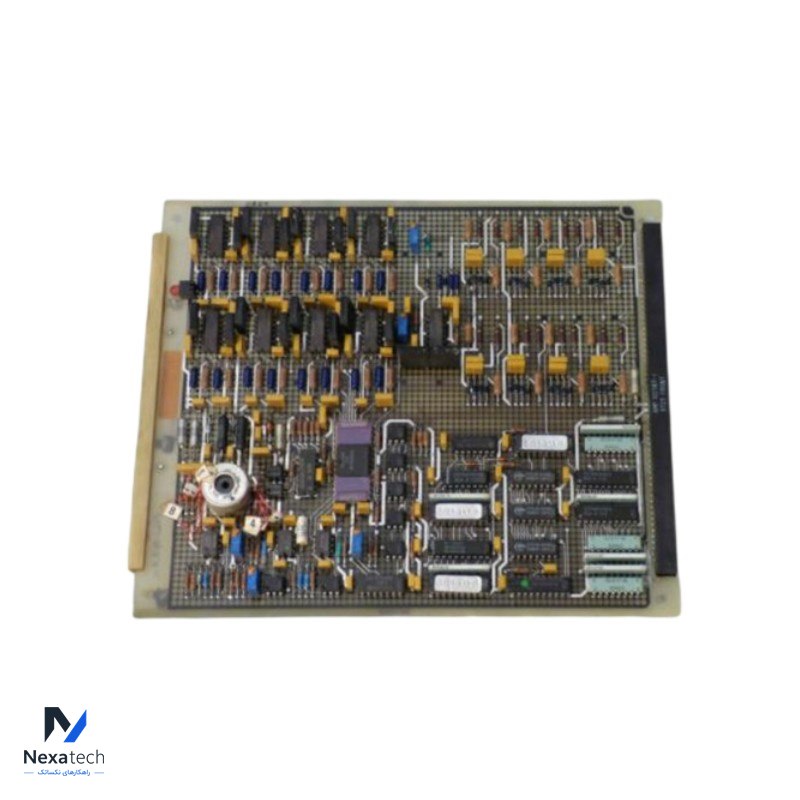

WOODWARD 5462-948 T/C Card 8 Channel

The Woodward 5462-948 T/C Card (Thermocouple Card) 8 Channel is a component designed for temperature monitoring and control in industrial applications. This card is typically used in control systems to measure and process temperature data from thermocouples, which are essential for managing the operational temperature of engines, turbines, and other machinery.

Key Features:
8 Channel Input:

The 5462-948 T/C Card supports up to eight thermocouple inputs, allowing simultaneous temperature monitoring from multiple sources.
This makes it suitable for systems requiring comprehensive temperature data collection from various critical points.

Thermocouple Compatibility:

The card is compatible with various types of thermocouples (e.g., Type J, K, T, E), making it versatile for different temperature measurement needs in industrial processes.
The thermocouple type and range can usually be configured to match the system requirements.
Precise Temperature Measurement:

Provides accurate temperature readings necessary for maintaining system stability and performance.
The precision of the thermocouple inputs ensures that control systems can adjust based on real-time temperature data, improving efficiency and safety.
Real-Time Monitoring and Feedback:

The card provides real-time temperature data to the control system, enabling immediate feedback and adjustments.
Crucial for systems that rely on temperature control to optimize performance or prevent overheating.
Built-In Diagnostics:

Integrated diagnostics help identify faults or irregularities in the thermocouples or their readings, reducing the risk of system failures due to temperature mismanagement.
Alerts can be triggered for operators if temperatures exceed safe operating limits.

Industrial Durability:

Like other Woodward products, the 5462-948 T/C Card is designed to perform reliably in harsh industrial environments, including extreme temperatures, vibrations, and electrical noise.
The card is constructed to meet the demands of power generation plants, engines, and other industrial machinery control systems.
Easy Integration:

The card can be easily integrated into existing Woodward control systems, such as the company's governors and engine management platforms.
It provides seamless data communication and interaction with other system components to ensure cohesive control strategies.

Technical Specifications:
Model: Woodward 5462-948 T/C Card
Channels: 8 thermocouple inputs
Thermocouple Types: Compatible with common thermocouple types (J, K, T, E, etc.)
Diagnostics: Integrated system for detecting faults in temperature readings or sensor failures.
Real-Time Monitoring: Provides continuous temperature data for precise control adjustments.
