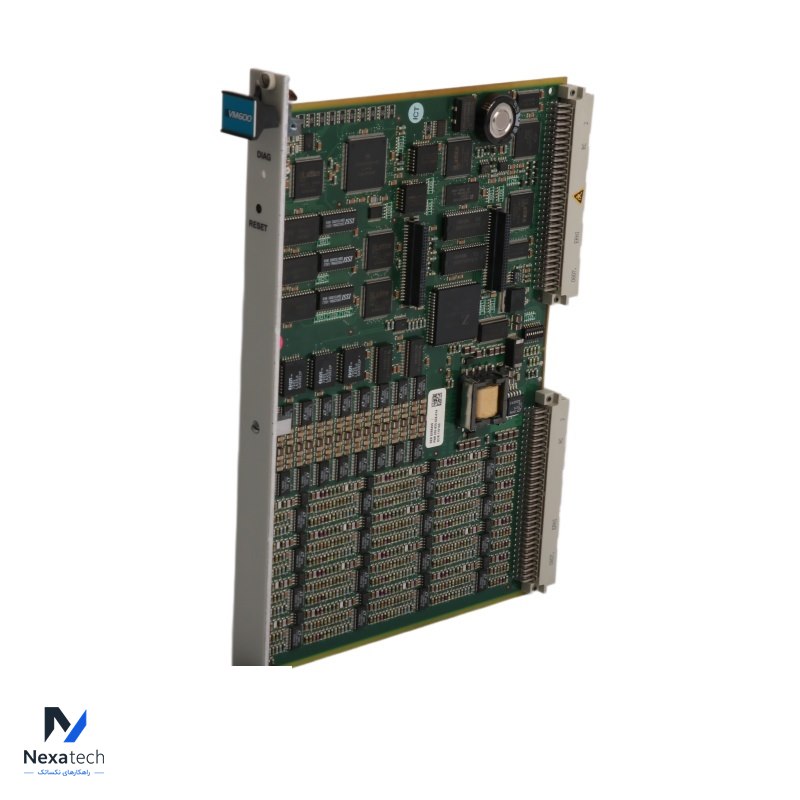

VIBRO METER VM600 CMC16 200-530-025-014 Condition Monitoring Card

Number of Independent Channels: 4
Speed Measurement Range: 1 to 100000 RPM (0.017 Hz to 1.667 kHz)
Speed Measurement Resolution: 5 ns
Current Measuring Resistor: 200 Ω
Tachometer Voltage Range: −20 to +20 VDC
Tachometer Current Range: −30 to +30 mA
Input Impedance: ≥100 kΩ
DC Component Range: −20 to +20 V
Maximum Common Mode Voltage: ±50 V
A/D Converter Resolution: 24-bit
Maximum Sampling Rate: 98 kHz
Crosstalk Attenuation: Typically 80 dB
Operating Temperature: 0 to 65°C (32 to 149°F)
Storage Temperature: −40 to 85°C (−40 to 185°F)
Operating Humidity: 0 to 90% Relative Humidity
