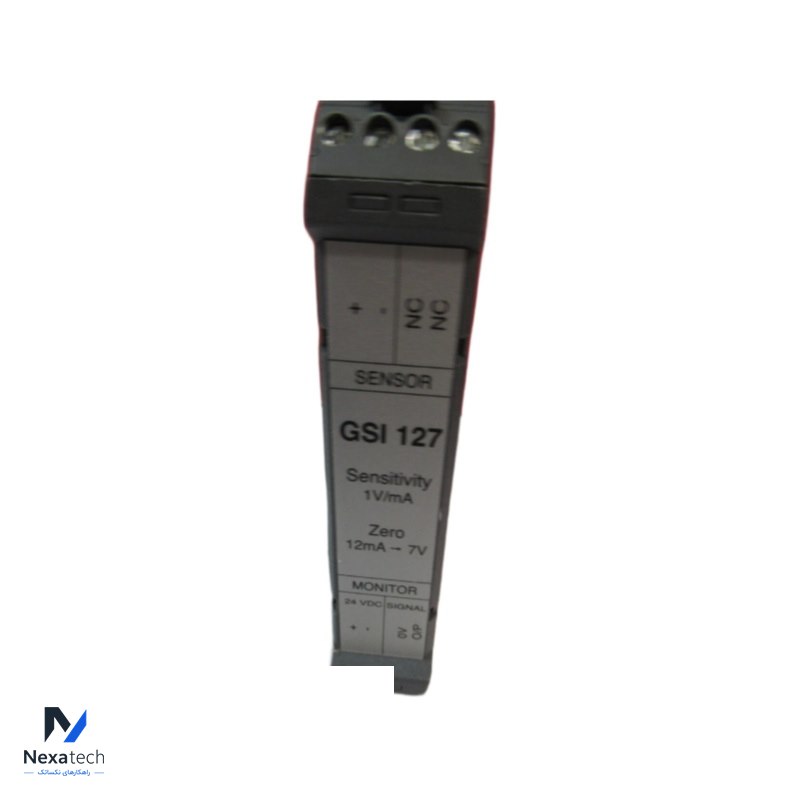

VIBRO METER GSI127 244-127-000-017 A1-B02 galvanic separation unit

Operating Temperature: 0 to 70 °C (32 to 158 °F)
Storage Temperature: −40 to 85 °C (−40 to 185 °F)
Operating Humidity: 90% max. non-condensing (IEC 60068-2-30)
Storage Humidity: 95% max. non-condensing (IEC 60068-2-30)
Vibration: 1 g peak (IEC 60068-2-6)
Shock Acceleration: 6 g peak (IEC 60068-2-27)
Input Voltage Range: 18 to 30 V DC
Output Voltage Dynamic Range: 2 to 20 V DC (with 10 kΩ load)
Output Impedance: 20 Ω
Output Signal Sensitivity Drift with Temperature: ≤50 ppm/°C
Frequency Band (±0.5 dB Transfer): DC to 20 kHz
