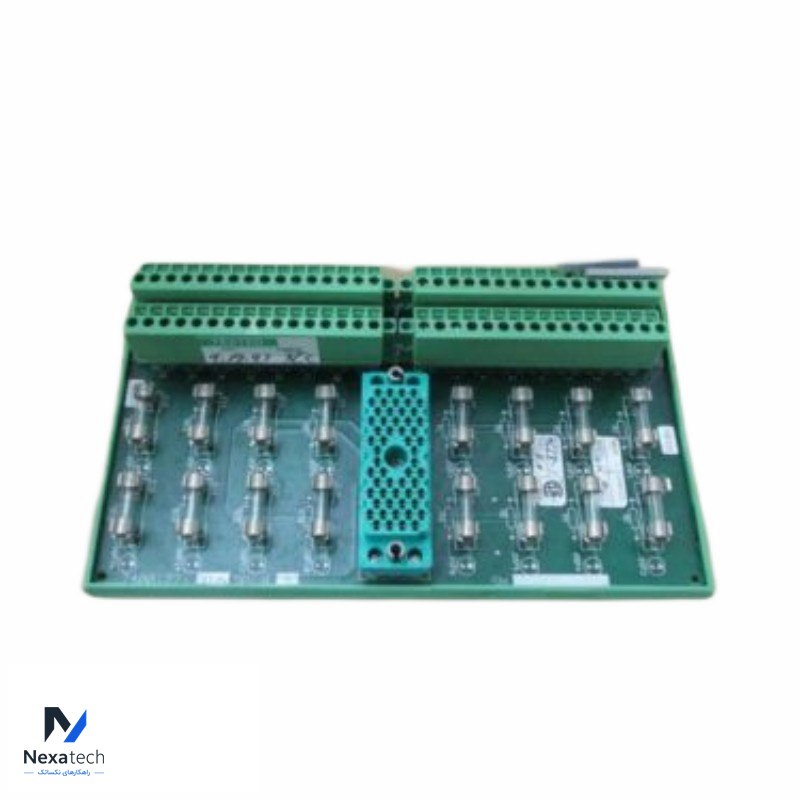

Name: Triconex 9668-110 non-commoned relay output Termination panel
Brand: Triconex
SKU: Triconex 9668-110
Availability: InStock

مشخصات فنی

Specification
Brand Name	Triconex
Model Number	9668-110
Alternate Part Number	9668-110
Condition	100% Original
Dimensions	19.7x11x5.5cm
Description	relay output Termination panel
Weight	0.52KG
Warranty	12 Months

To interface with each 32-point relay output module, you will need two termination panels (or cables). You have the flexibility to mix and match any combination of the termination products listed. For instance, you can use either two 9668-110 panels, two 9651-110 basic panels, or one of each (one 9668-110 panel and one 9651-110 basic panel).

Termination Option: Non-Commoned, Normally Open (3636R, 3636T)

Standard Termination Panel: 9668-110

The 9668-110 is a non-commoned relay output termination panel with the following features:

■16 LOAD+ and LOAD– terminals

■16 PWR+ and PWR– terminals

■16 fuses

Each 9668-110 panel supports 16 points. Since the relay output modules have 32 points, you will need to use two termination panels for each module. The 9668-110 panels come with two sets of labels: 1-16 and 17-32. For instructions on applying these labels
