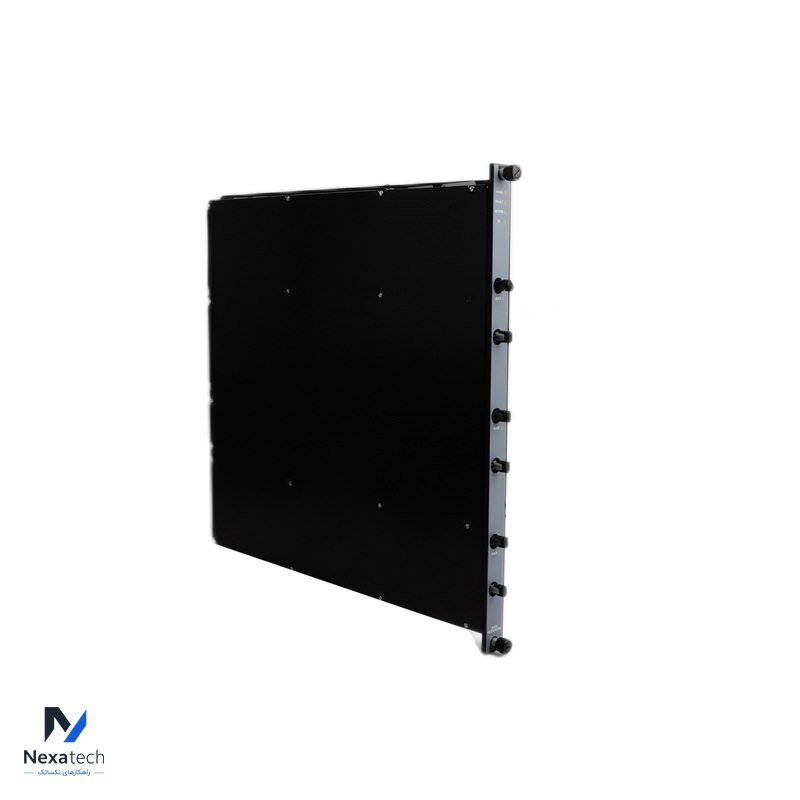

TRICONEX 4200N Analog Input Module

TRICONEX 4200N Analog Input Module
General Description:
Model: TRICONEX 4200N
Type: Analog Input Module
Function: Acquires analog signals from field devices such as sensors and transducers, and converts them into a format suitable for processing by the Tricon control system.
Technical Specifications:
Number of Inputs: Typically 8 channels per module.
Input Types: Supports various types of analog inputs such as voltage, current, and resistance.

Voltage Inputs: Common ranges include ±10 VDC, 0-10 VDC.
Current Inputs: Common ranges include 4-20 mA, 0-20 mA.
Resistance Inputs: Can measure resistance in various ranges depending on the configuration.
Resolution: Typically high resolution for accurate signal measurement, often in the range of 12 to 16 bits.
Accuracy: High accuracy in signal conversion, with typical specifications including ±0.1% of full scale.
Isolation: Provides electrical isolation between input channels and the internal circuitry to prevent interference and ensure signal integrity.
Sampling Rate: High-speed sampling for real-time processing, often configurable depending on application needs.

Features:
Modular Design: Easily integrates into the Tricon system with a modular, hot-swappable design.
Calibration: Often includes built-in calibration features to ensure accuracy and reliability over time.
Diagnostics: Includes diagnostic features to monitor the status of the inputs and detect any faults or anomalies.
Compatibility: Compatible with various field sensors and devices, providing flexibility in system design.
