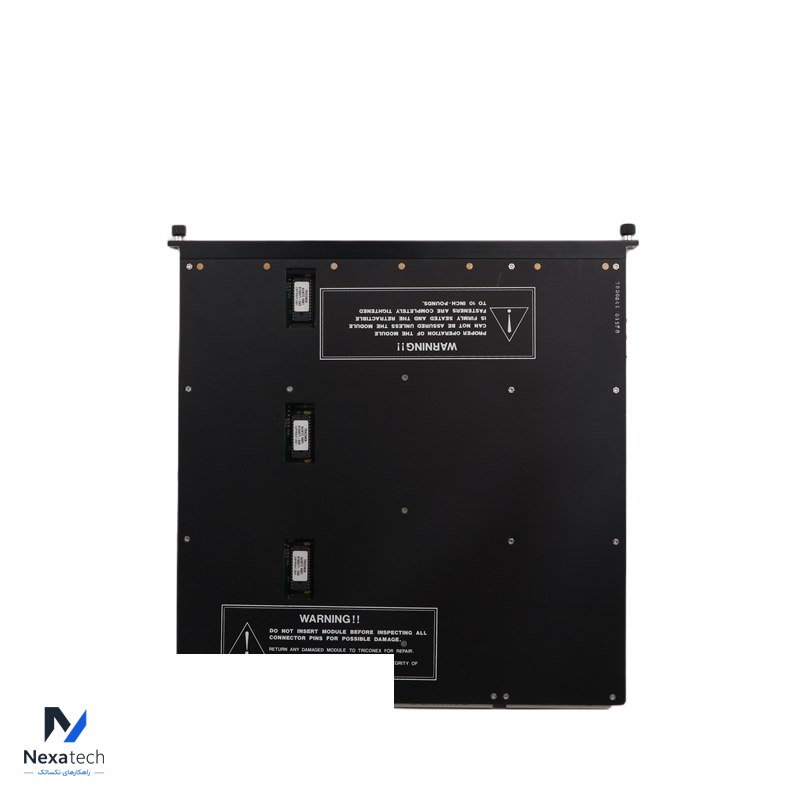

TRICONEX 3700A TMR Analog Input Module

The TRICONEX 3700A is a Triple Modular Redundant (TMR) Analog Input Module designed for use with the Triconex Tricon safety and control system. This module is crucial for applications where high reliability, fault tolerance, and precision in analog signal measurement are essential.

Key Specifications:
Product Type: Triple Modular Redundant (TMR) Analog Input Module
Model: 3700A
Number of Channels: 8 channels
Input Types: Supports various analog input signals, including:
Voltage: ±10V, 0-10V
Current: 4-20mA, 0-20mA

Input Range: Typically accommodates standard industrial input ranges
Resolution: High-resolution analog-to-digital conversion for accurate measurements
Accuracy: Designed for high accuracy and precision in signal measurement
Fault Tolerance: TMR architecture ensures high reliability by using three independent input circuits per channel, with fault detection and voting mechanisms
Safety Integrity Level (SIL): Certified for SIL3 applications according to IEC 61508
Isolation: Provides galvanic isolation between input channels and the control system
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Non-operating Temperature: -40°C to +85°C (-40°F to +185°F)
Operating Humidity: 5% to 95% RH (non-condensing)
Dimensions: Standard Triconex module size
Weight: Approximately 1.5 kg (varies based on configuration)

Features:
Triple Modular Redundancy (TMR): Ensures high reliability and fault tolerance by employing three redundant input circuits per channel. This design helps maintain system integrity even if one circuit fails.
High Accuracy: Provides precise measurement of analog signals, critical for accurate process control and monitoring.
Galvanic Isolation: Protects against electrical noise and disturbances, ensuring accurate signal measurement and system reliability.
Safety Compliance: Meets SIL3 standards, making it suitable for safety-critical applications where system reliability and safety are paramount.
Advanced Diagnostics: Includes diagnostics to detect faults in input channels, facilitating timely maintenance and ensuring continuous operation.

The TRICONEX 3700A module is widely used in industries requiring high-reliability and safety-critical applications, such as oil and gas, power generation, chemical processing, and other sectors where precise and reliable analog signal measurement is crucial for safe and efficient operations.
