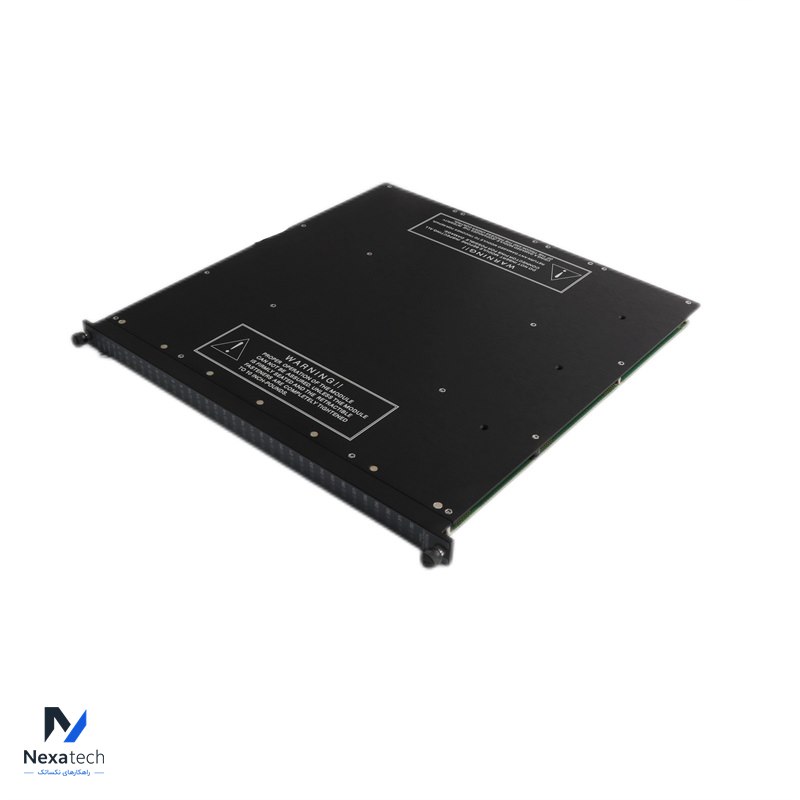

TRICONEX 3625N Digital 24VDC Output Module

The TRICONEX 3625N is a Digital 24VDC Output Module designed for use with the Triconex Tricon safety and control system. This module is responsible for providing digital output signals to control various field devices and equipment in industrial applications.

Key Specifications:
Product Type: Digital Output Module
Model: 3625N
Input Voltage: 24V DC
Number of Channels: Typically 16 channels (verify with specific documentation)
Output Type: Digital outputs
Output Voltage: 24V DC
Output Current: Each channel can typically handle up to 0.5A to 1A (specific current rating should be verified with the manufacturer)

Isolation: Provides isolation between output channels and the control system to protect against electrical interference and noise.
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Non-operating Temperature: -40°C to +85°C (-40°F to +185°F)
Operating Humidity: 5% to 95% RH (non-condensing)
Dimensions: Standard module size for Triconex systems (exact dimensions should be referenced in the manufacturer's specifications).
Weight: Approximately 1.5 kg (varies based on configuration).

Features:
Digital Outputs: Provides 16 channels for controlling digital devices such as relays, actuators, and other field equipment.
Galvanic Isolation: Ensures electrical isolation to minimize interference and protect the system from noise and voltage spikes.
High Reliability: Designed for reliable performance in industrial environments, suitable for use in safety-critical applications.
Advanced Diagnostics: Includes diagnostic features to monitor the health and status of output channels, assisting in maintenance and troubleshooting.
Compatibility: Integrates with Triconex Tricon control systems, supporting effective system operation and control.

The TRICONEX 3625N Digital 24VDC Output Module is essential for interfacing with digital control devices in Triconex safety and control systems. It ensures reliable operation and control of field devices, contributing to the overall functionality and performance of the control system in various industrial applications. For detailed specifications and installation information, referring to the manufacturer's documentation or contacting technical support is recommended.
