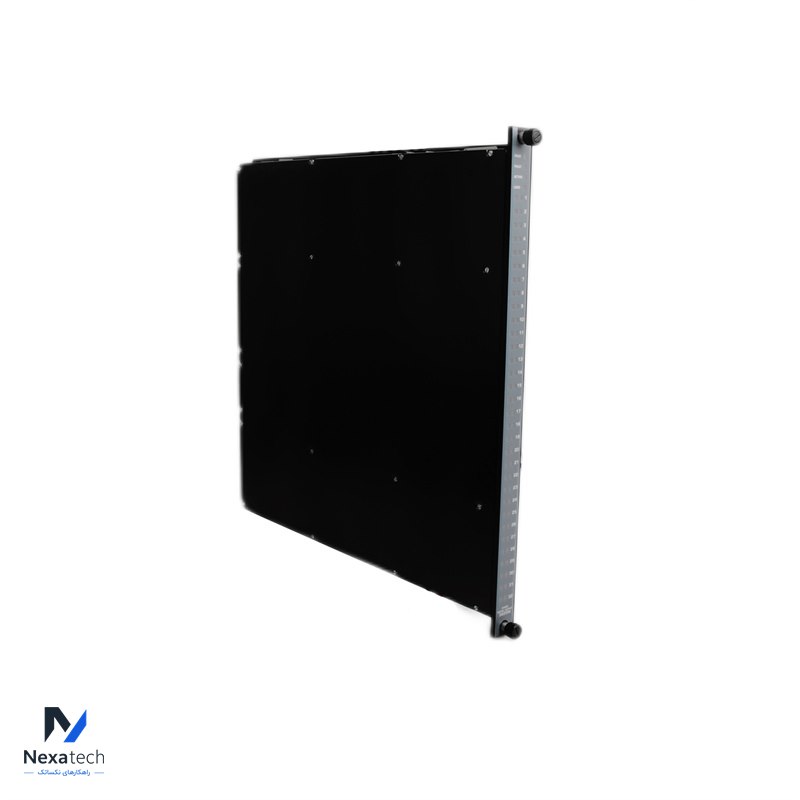

TRICONEX 3625 Digital 24VDC Output Module

The TRICONEX 3625 is a Digital 24VDC Output Module designed for use with the Triconex Tricon safety and control system. This module provides reliable and controlled output signals for various industrial applications, where digital control and actuation are required.

Key Specifications:
Product Type: Digital Output Module
Model: 3625
Number of Channels: 16 channels
Output Type: Digital outputs
Output Voltage: 24V DC
Output Current: Typically 0.5A per channel (verify with specific module documentation)
Isolation: Galvanic isolation between output channels and the control system
Fault Tolerance: Designed to ensure reliable operation in safety-critical applications
Safety Integrity Level (SIL): Suitable for use in safety-critical environments, typically compliant with SIL3 standards per IEC 61508

Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Non-operating Temperature: -40°C to +85°C (-40°F to +185°F)
Operating Humidity: 5% to 95% RH (non-condensing)
Dimensions: Standard Triconex module size
Weight: Approximately 1.5 kg (varies based on configuration)

Features:
Digital Outputs: Provides 16 digital outputs for controlling field devices, actuators, or other digital equipment.
Galvanic Isolation: Ensures electrical isolation between output channels and the control system to protect against noise and electrical interference.
High Reliability: Built to meet rigorous reliability standards, ensuring consistent performance in demanding industrial environments.
Safety Compliance: Meets SIL3 standards, making it suitable for use in safety-critical applications where fault tolerance and system integrity are crucial.
Advanced Diagnostics: Includes diagnostic features to monitor the health and status of output channels, aiding in maintenance and troubleshooting

The TRICONEX 3625 module is used in various industrial control systems where reliable digital output control is required, such as in process automation, safety systems, and other critical applications.
