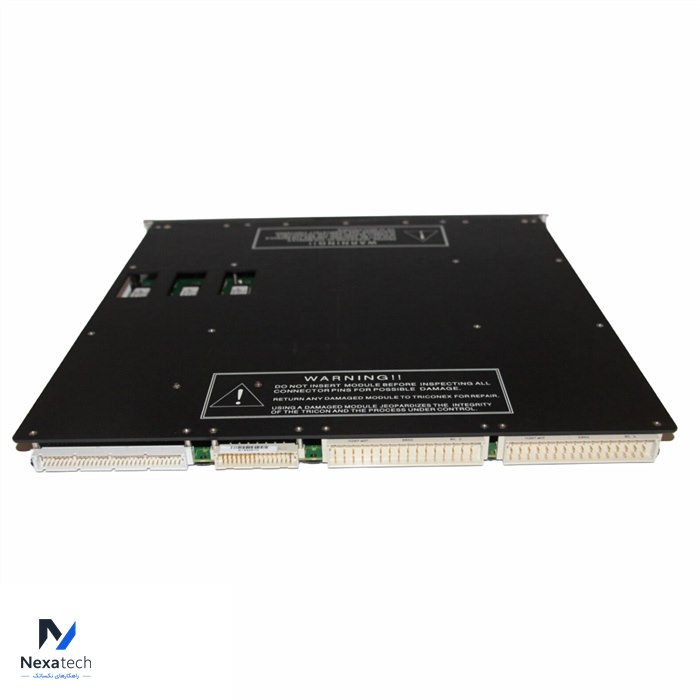

TRICONEX 3503E Digital Input Module

The TRICONEX 3503E is a Digital Input Module designed for use with the Triconex Tricon safety and control system. This module is integral for receiving digital signals from various field devices, sensors, and switches, providing crucial input to the control system for monitoring and decision-making processes.

Key Specifications:
Product Type: Digital Input Module
Model: 3503E
Number of Channels: 16 channels
Input Type: Digital inputs
Input Voltage Range: Typically supports 24V DC digital signals
Input Type: May include dry contact or 24V DC input signals
Isolation: Provides galvanic isolation between input channels and the control system to protect against electrical interference and noise
Safety Integrity Level (SIL): Suitable for use in safety-critical applications, typically compliant with SIL3 standards per IEC 61508

Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Non-operating Temperature: -40°C to +85°C (-40°F to +185°F)
Operating Humidity: 5% to 95% RH (non-condensing)
Dimensions: Standard Triconex module size
Weight: Approximately 1.5 kg (varies based on configuration)

Features:
Digital Inputs: Provides 16 channels for receiving digital signals from field devices, enabling monitoring and control of various processes.
Galvanic Isolation: Ensures electrical isolation to prevent noise and interference from affecting the control system, enhancing signal integrity and reliability.
High Reliability: Designed for demanding industrial environments, ensuring robust performance and reliability in safety-critical applications.
Safety Compliance: Meets SIL3 standards, ensuring it is suitable for high-integrity safety applications where reliability and fault tolerance are crucial.

Advanced Diagnostics: Includes diagnostic features to monitor the health and status of input channels, assisting in maintenance and troubleshooting.

The TRICONEX 3503E module is commonly used in industries where reliable digital signal input is necessary for effective process control, monitoring, and safety. It is particularly suitable for applications in sectors such as power generation, oil and gas, and chemical processing, where safety and reliability are paramount.
