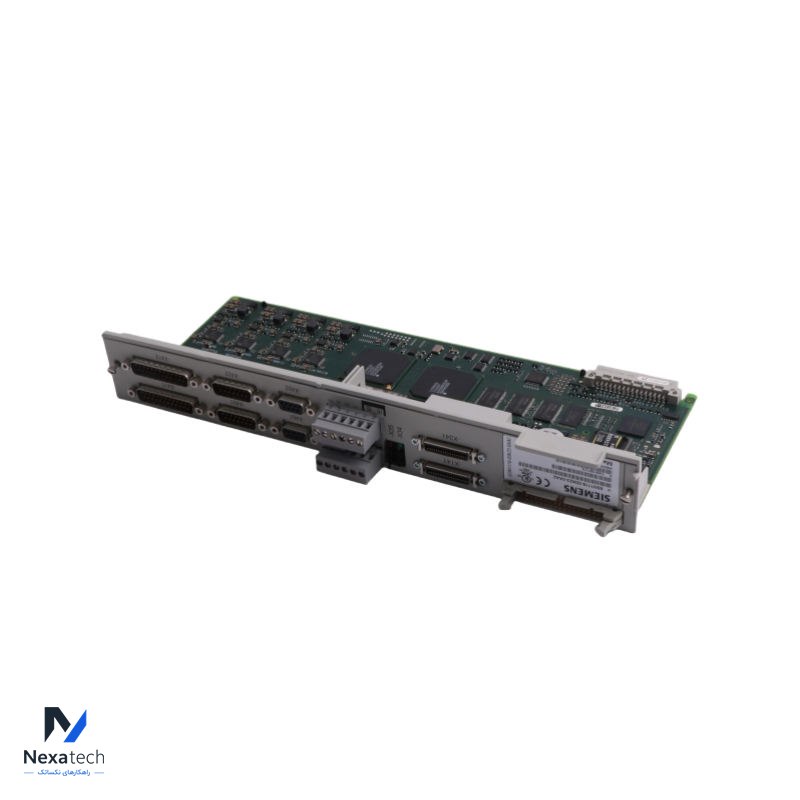

Siemens 6SN1118-0DK23-0AA2 DIGITAL CONTROL LOOP BLOCK

The Siemens 6SN1118-0DK23-0AA2 Digital Control Loop Block is a component used in the SIMODRIVE 611 system, specifically designed for high-performance motion control applications. This module is optimized for controlling two axes using a sinusoidal/cosine (sin/cos) direct measuring system.

Product Specifications:
Model: 6SN1118-0DK23-0AA2
Type: Digital Control Loop Block
System Compatibility: SIMODRIVE 611

Common Questions:
Question: What is the primary function of the Siemens 6SN1118-0DK23-0AA2 Digital Control Loop Block?
Answer: The primary function of this module is to manage digital control loops for high-performance motion control applications, specifically in CNC systems.

Question: How many axes can this control loop block handle?
Answer: The module can handle two axes simultaneously.

Question: What type of measuring system is compatible with the 6SN1118-0DK23-0AA2?
Answer: It is compatible with a sinusoidal/cosine (sin/cos) 1 VPP direct measuring system.

Question: What is the required NC software version for this module?
Answer: The module requires NC software version from 06.04.09 or later for proper operation.

Question: In what applications is the 6SN1118-0DK23-0AA2 commonly used?
Answer: It is commonly used in CNC applications, machine tools, and other automation systems that require precise motion control.

Question: Is the module easy to integrate into existing systems?
Answer: Yes, it is designed for easy mounting and integration into control cabinets and enclosures.

Question: What are the benefits of using the SIMODRIVE 611 Digital Control Loop Block?
Answer: Benefits include high performance, precise control of motion, and compatibility with advanced measuring systems.

Question: Can this module be used with other Siemens products?
Answer: While it is primarily designed for use with the SIMODRIVE 611 system, compatibility may exist with other Siemens automation components, but it’s advisable to check specific requirements.

Question: What type of signal does the measuring system use?
Answer: The direct measuring system uses a sin/cos signal format, which provides high-resolution feedback for motion control.
