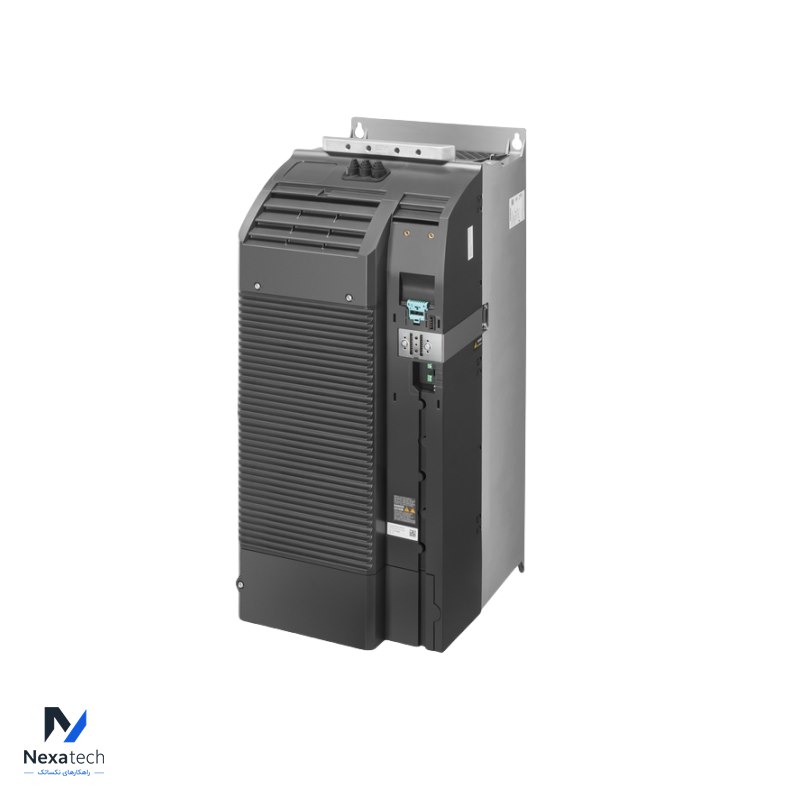

SIEMENS 6SL3210-1PE31-5AL0 Power Module

Name: SIEMENS 6SL3210-1PE31-5AL0 Power Module
Brand: Siemens
SKU: 6SL3210-1PE31-5AL0
Availability: InStock

پارت‌نامبر: 6SL3210-1PE31-5AL0

توضیحات محصول

Power Module

Specification
Brand Name	SIEMENS	Input Number of Phases: 3AC Input Line Voltage: 380...480V ±10% Input Line Frequency: 47...63 Hz Rated Current (LO): 140.00 A Output Number of Phases: 3AC Rated Output Voltage: 400 V Maximum Output Current: 220.00 A Pulse Frequency: 4 kHz Output Frequency for Vector Control: 0...200 Hz Sound Pressure Level (1m): 68 dB Power Loss: 1.79 kW Operating Temperature Range: -40 ... 70 °C (-40...158 °F) Transport/Storage Temperature Range: -40 ... 70 °C (-40...158 °F) Maximum Operating Relative Humidity: 95 % RH, condensation not permitted



Model Number	6SL3210-1PE31-5AL0
Alternate Part Number	6SL3210-1PE31-5AL0
Condition	100% Original
Dimensions	70.8x30.5x35.7cm
Description	Power Module
Weight	63 kg
Warranty	12 Months
