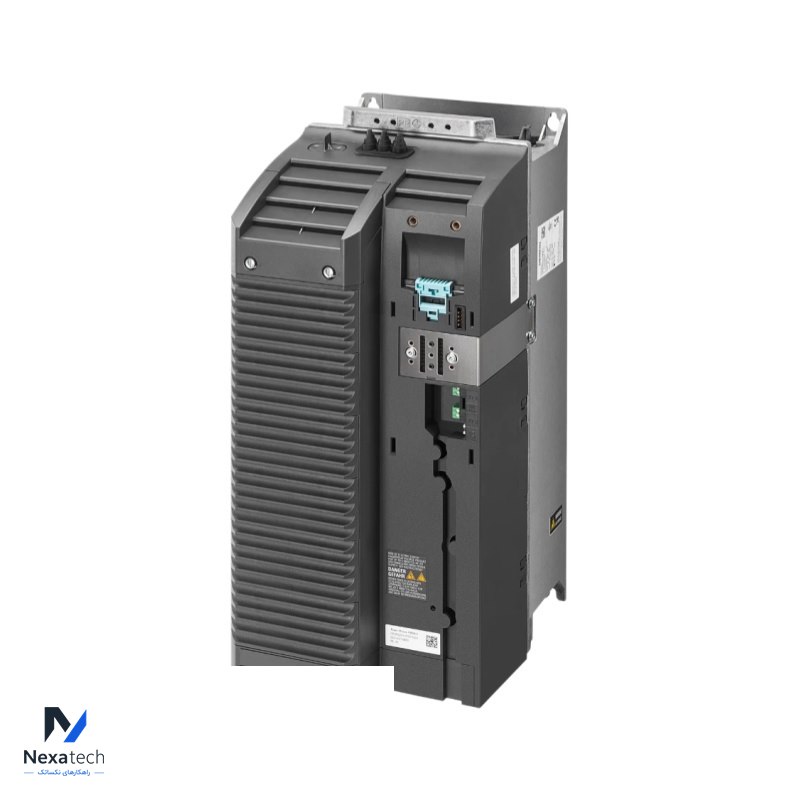

SIEMENS 6SL3210-1PE27-5AL0 Power module

Name: SIEMENS 6SL3210-1PE27-5AL0 Power module
Brand: Siemens
SKU: 6SL3210-1PE27-5AL0
Availability: InStock

پارت‌نامبر: 6SL3210-1PE27-5AL0

توضیحات محصول

Power module

Specification
Brand Name	SIEMENS	Input Number of Phases: 3 AC Line Voltage: 380...480V ±10% Line Frequency: 47...63 Hz Rated Current (LO): 70.00 A Rated Current (HO): 62.00 A Output Number of Phases: 3 AC Pulse Frequency: 4 kHz Output Frequency for Vector Control: 0 ... 200 Hz Output Frequency for V/f Control: 0 ... 550 Hz Sound Pressure Level (1m): 72 dB Power Loss: 1.02 kW Transport Temperature Range: -40 ... 70 °C (-40 ... 158 °F) Storage Temperature Range: -40 ... 70 °C (-40 ... 158 °F) Conductor Cross-Section: 10.00 ... 35.00 mm² Degree of Protection: IP20 / UL Open Type



Model Number	6SL3210-1PE27-5AL0
Alternate Part Number	6SL3210-1PE27-5AL0
Condition	100% Original
Dimensions	20x47.2x23.7cm
Description	Power module
Weight	18.5 kg
Warranty	12 Months
