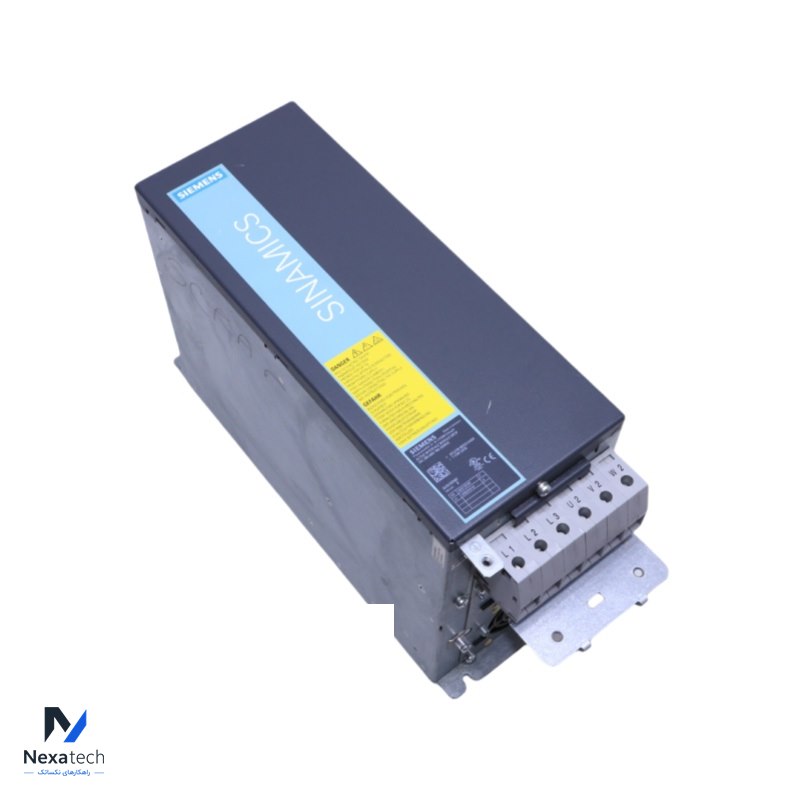

SIEMENS 6SL3100-0BE23-6AB0 Active Interface Module

Name: SIEMENS 6SL3100-0BE23-6AB0 Active Interface Module
Brand: Siemens
SKU: 6SL3100-0BE23-6AB0
Availability: InStock

پارت‌نامبر: 6SL3100-0BE23-6AB0

توضیحات محصول

Active Interface Module

Specification
Brand Name	SIEMENS	Input Number of Phases: 3AC Line Voltage: 380...480V Internal Resistor: 1440 Ω ±10% Rated Current: 58A Power Requirement (DC 24 V): 0.49A Switching Current (as NC Circuit at 250 V AC): 1.6A Switching Current (as NC Circuit at 60 V DC): 0.75A Degree of Protection: IP20 / UL Open Type Sound Pressure Level: 60 dB Power Loss: 0.34 kW Conductor Cross-Section: 50 mm² (1 AWG)



Model Number	6SL3100-0BE23-6AB0
Alternate Part Number	6SL3100-0BE23-6AB0
Condition	100% Original
Dimensions	15x38x27cm
Description	Active Interface Module
Weight	19 kg
Warranty	12 Months
