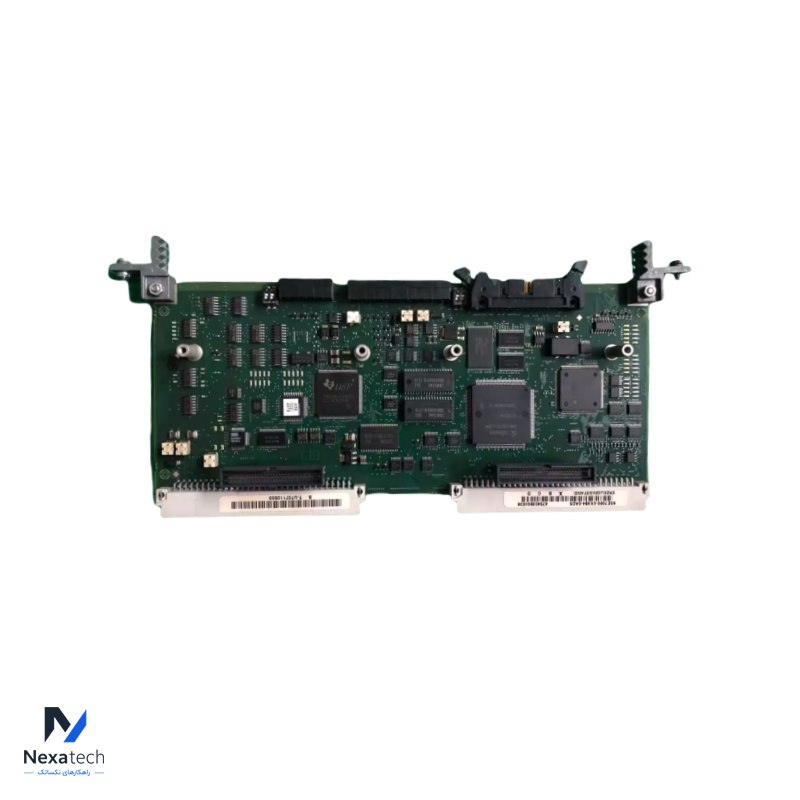

SIEMENS 6SE7034-5HK84-1JC0 INVERTER TRIGGERING MODULE

The SIEMENS 6SE7034-5HK84-1JC0 is an Inverter Triggering Module (IGD7) designed for use with medium-voltage inverters.

Specifications:
Function: This module is responsible for triggering or controlling the inverter's power switching devices (such as IGBTs), managing the operation of inverters that control AC motors by converting DC power to AC.
Voltage and Current Rating: The module is rated for input voltages of 500 to 690V AC and can handle DC input voltages ranging from 675 to 930V DC with a current capacity of 452A.
Application: It is typically used in high-power, industrial environments for driving motors, such as in conveyor systems, pumps, fans, and other heavy machinery.
Functionality:
Triggering IGBTs: The IGD7 module provides precise control for triggering Insulated Gate Bipolar Transistors (IGBTs) in the inverter, essential for efficient and reliable motor control.
Voltage Conversion: The inverter module converts DC voltage to the required AC output, allowing control of motor speed and torque.
Frequency Control: The module can operate at standard industrial frequencies (50/60 Hz), enabling f

Common Questions:
What are the typical applications for the IGD7 Triggering Module?

The module is used for high-power motor control applications in industries such as manufacturing, mining, and energy.
How is the module installed in an inverter system?

The triggering module is installed within the inverter cabinet and is connected to the power switching devices (IGBTs) to control motor operation.
What protection features does this module offer?

The module typically includes protection against overvoltage, overcurrent, and short circuits, but specific protection details should be confirmed in the documentation.
Can this module operate with other voltage levels?

The module is specifically designed for operation within the 500-690V AC and 675-930V DC range, so other voltage levels are not recommended without consulting Siemens.
