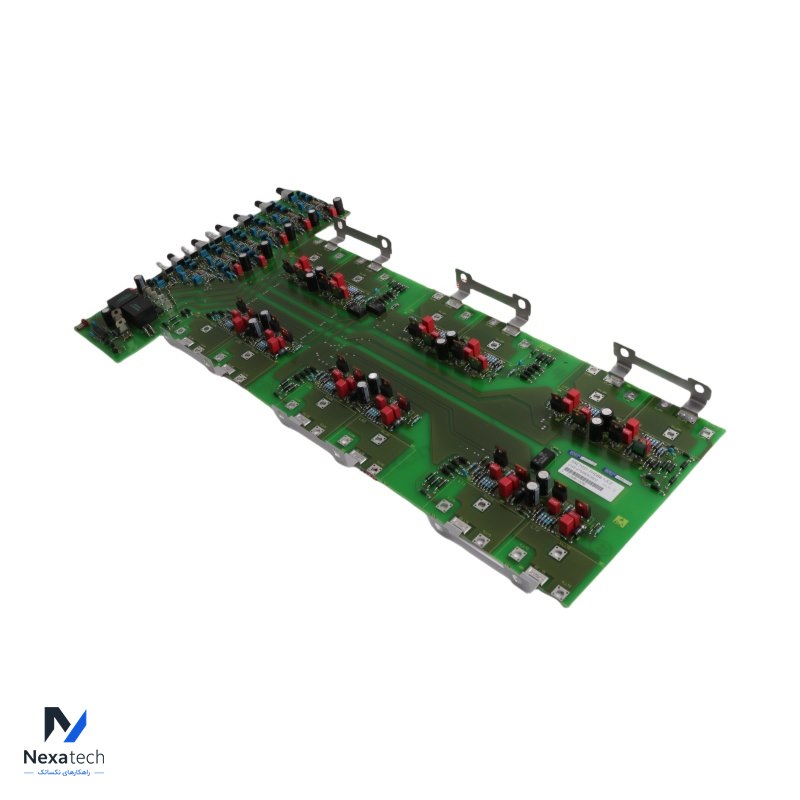

Siemens 6SE7031-7HG84-1JC2 Master drives Inverter

The Siemens 6SE7031-7HG84-1JC2 is part of the SIMOVERT Master Drives series, specifically an Inverter Control Module (IGD5). This module is designed to regulate and control motor speed and torque in various industrial applications, using alternating current (AC) voltage. Below are the key features and common questions regarding this model:

Key Features:
Input Voltage:

660-690 V AC, 3-phase, 50/60 Hz.
DC voltage: 890-930 V DC.
Output Current:

171 A, which corresponds to the current that the inverter can provide to the motor.
Usage:

Typically used for controlling large industrial motors, often in sectors like manufacturing, energy, and heavy machinery operations.
The module can handle high voltage and high-power applications, making it suitable for demanding environments.

Common Questions:
1. What is the main purpose of the Siemens 6SE7031-7HG84-1JC2 Inverter Control Module?
Answer: This inverter module is used to control the speed, torque, and direction of large AC motors. It converts incoming AC power to DC and then back to AC with variable frequency and voltage to precisely control motor operation.

2. What kind of motors can the 6SE7031-7HG84-1JC2 control?
Answer: This module is designed to control large three-phase AC induction motors, typically used in industrial applications such as conveyors, compressors, pumps, and fans that require precise control of motor speed and torque.

3. What voltage and current does this inverter support?
Answer:

Input Voltage: 660-690 V AC (3-phase) or 890-930 V DC.
Output Current: 171 A, which corresponds to the maximum current that can be supplied to the motor.

4. Is the 6SE7031-7HG84-1JC2 inverter module suitable for regenerative braking?
Answer: Many Siemens Master Drives inverters, including models like this, support regenerative braking where the energy generated during motor deceleration can be fed back into the electrical grid. This feature increases energy efficiency in applications where braking is frequently required.

5. How does the cooling system work for this module?
Answer: Inverters of this size typically use air cooling or liquid cooling systems to manage heat generated during operation. The cooling method used depends on the specific installation and operational environment. Air-cooled units may have fans or heat sinks, while liquid-cooled units require a coolant circulation system.

6. Can this inverter module be used for both 50 Hz and 60 Hz power systems?
Answer: Yes, the 6SE7031-7HG84-1JC2 is compatible with both 50 Hz and 60 Hz power supply systems, making it suitable for global applications where power frequency varies by region.
