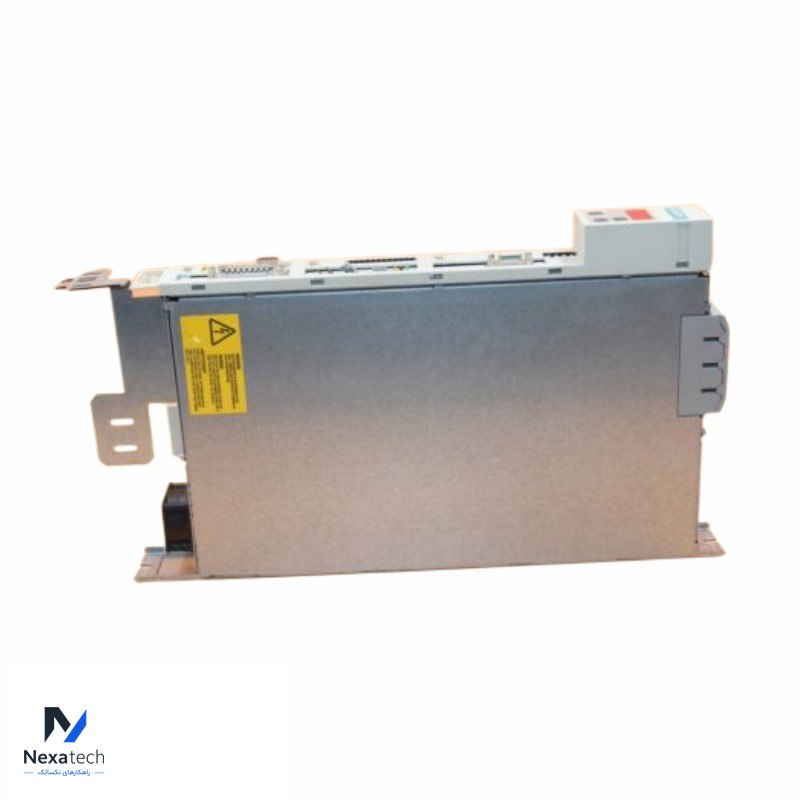

Name: SIEMENS 6SE7012-0TP50 SIMOVERT MASTERDRIVES MOTION CONTROL
Brand: Siemens
SKU: 6SE7012-0TP50
Availability: InStock

مشخصات فنی

Brand Name:	SIEMENS
Model Number:	6SE7012-0TP50
Alternate Part Number	6SE7012-0TP50
Condition:	100% Original
Dimensions	4.5 x 36 x 26cm	Weight	3kg
Description	SIMOVERT MASTERDRIVES MOTION CONTROL	Warranty:	12 Months

The Siemens 6SE7012-0TP50 is a model from the SIMOVERT MASTERDRIVES series, specifically designed for motion control applications. It is part of Siemens' portfolio for industrial automation and drive technology.

For configurations with more than two inverters, an external 24 V power supply is required. Specifically, if using the 6SE7011-5EP50 Compact PLUS converter, the 6SE7012-0TP50 inverter can only be connected once. For details on selection and ordering, refer to page 3/17.

When using one or two inverters, the internal 24 V power supply of the converter can be utilized. The converter's rectifier will rectify the line voltage and supply the inverters through the DC bus system located on the top of the units. For setups involving more than two inverters, an external 24 V power supply must be provided, as outlined in the “Selection and ordering data” on page 3/17
