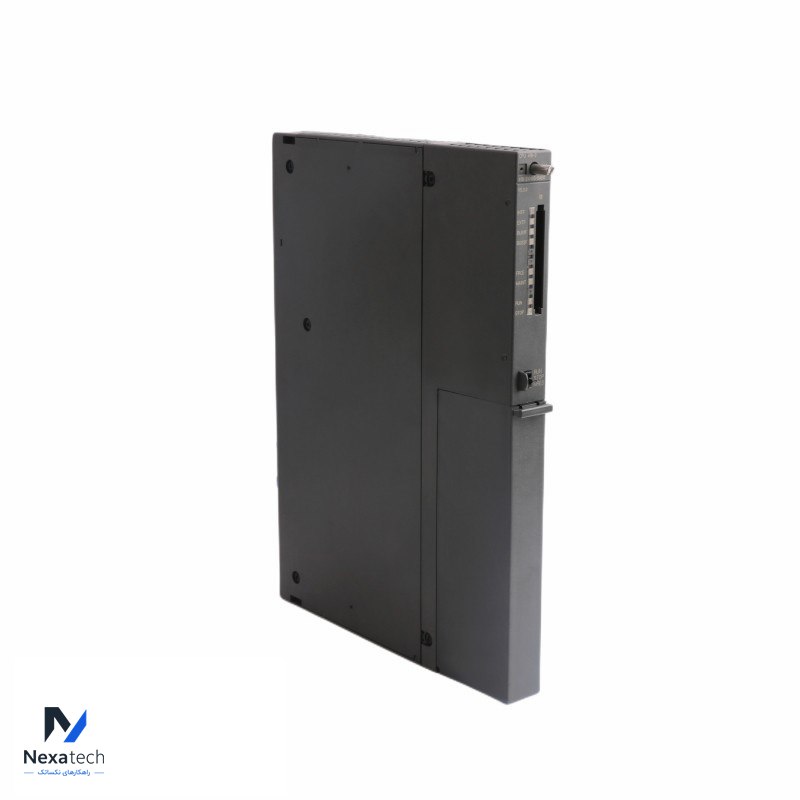

Name: Siemens 6ES7416-2XN05-0AB0 Central processing unit
Brand: Siemens
SKU: 6ES7416-2XN05-0AB0
Availability: InStock

Specification
Brand Name	Siemens	CiR Synchronization Time(Basic Load):100 ms CiR Synchronization Time (Per I/O Byte): 10 us Input Current from Backplane Bus (5 V DC): Typ. 0.9 A Power Loss(Typical): 4.5 W Power Loss (Maximum): 5 W Work Memory (Integrated): 5.6 Mbyte Backup Current: Typ. 125 μuA up to 40 C Number of Subprocess Images: Max.15 Number of Expansion Units: Max. 21 Required Slots: 1 Transmission Rate: Max. 12 Mbit/s Ambient Temperature During Operation (Minimum): 0 °C Ambient Temperature During Operation (Maximum):60 C



Model Number	6ES7416-2XN05-0AB0
Alternate Part Number	6ES7416-2XN05-0AB0
Condition	100% Original
Dimensions	2.5x12.3x29cm
Description	Central processing unit
Weight	0.78 kg
Warranty	12 Months

Moore Automation understands the criticality of your requirement and works towards reducing the lead time as much as possible.
The 6ES7416-2XN05-0AB0 Central processing unit is brand new and original.
To avail our best deals for 6ES7416-2XN05-0AB0 Central processing unit, contact us and we will get back to you within 24 hours.

Frequently Asked Questions (FAQ):

1.What is the integrated work memory of the Siemens 6ES7416-2XN05-0AB0?
The Siemens 6ES7416-2XN05-0AB0 has an integrated work memory of 5.6 Mbyte, which allows it to store and execute large automation programs.

2.How many subprocess images and expansion units can the Siemens 6ES7416-2XN05-0AB0 handle?
The Siemens 6ES7416-2XN05-0AB0 can manage up to 15 subprocess images and support a maximum of 21 expansion units.

3.How many slots does the Siemens 6ES7416-2XN05-0AB0 require for installation?
The Siemens 6ES7416-2XN05-0AB0 occupies one slot in the SIMATIC S7-400 rack for installation.

Application:
The Siemens 6ES7416-2XN05-0AB0 (SIMATIC S7-400 series) CPU is designed for medium to large-scale automation systems requiring high reliability, real-time performance, and strong computing power. It is widely used in industries such as power and energy, oil and gas, chemical processing, metallurgy, pulp and paper, water and wastewater treatment, rail transportation, automotive, and discrete manufacturing, typically serving as a central controller for plant-wide or critical process control with high availability.
