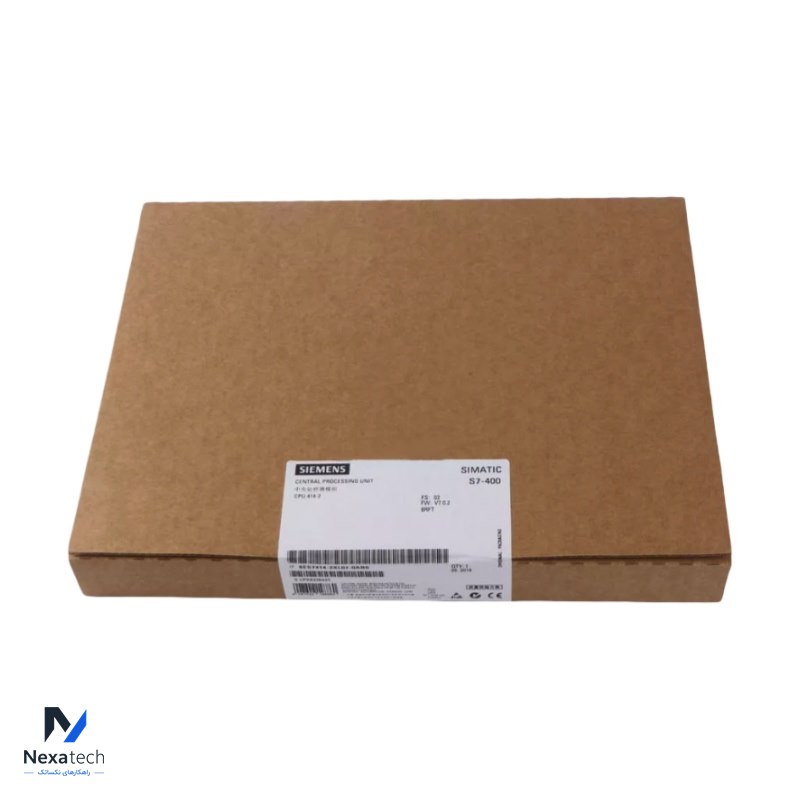

siemens 6ES7414-2XL07-0AB0 Central processing unit

Specification

Brand Name

siemens

CiR Synchronization Time (Basic Load): 100 ms
CiR Synchronization Time (Time per I/O Byte): 15 µs
Input Current from Backplane Bus (5 V DC, Typical): 0.9 A
Input Current from Backplane Bus (5 V DC, Maximum): 1.1 A
Power Loss (Typical): 4.5 W
Power Loss (Maximum): 5.5 W
Work Memory (Integrated): 2 Mbyte
External Backup Voltage for CPU: 5 V DC to 15 V DC
CPU Processing Time for Bit Operations (Typical): 18.75 ns
Local Data: Adjustable, maximum 16 kbyte
Number of Subprocess Images (Maximum): 15
Number of Expansion Units (Maximum): 21
Required Slots: 1
Transmission Rate (Maximum): 12 Mbit/s
Ambient Temperature During Operation: 0 °C to 60 °C

Model Number

6ES7414-2XL07-0AB0

Alternate Part Number

6ES7414-2XL07-0AB0

Condition

100% Original

Dimensions

2.4x22.2x29cm

Description

Central processing unit

Weight

0.74kg

Warranty

12 Months
