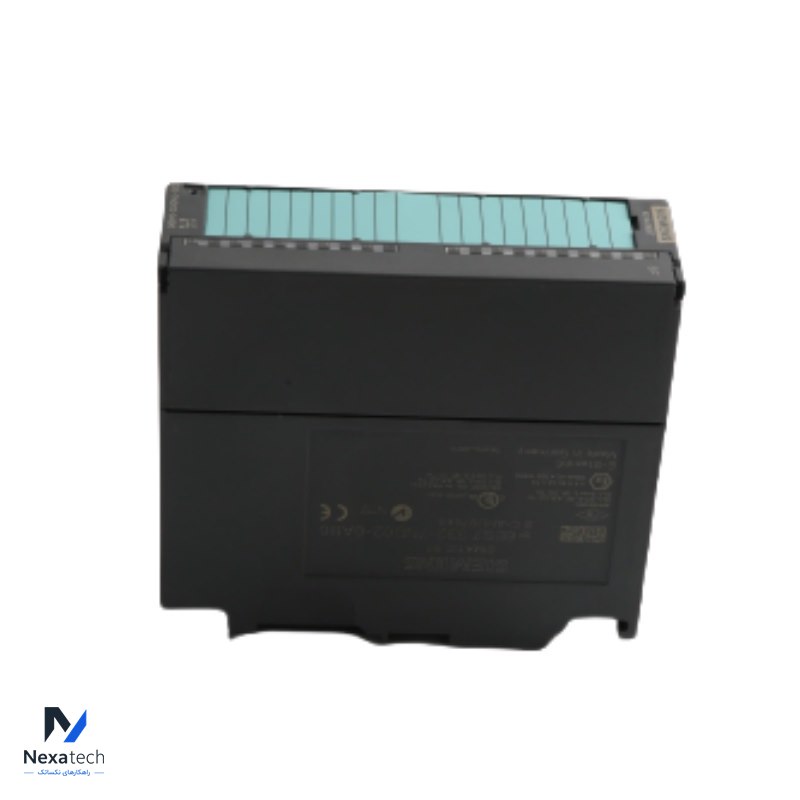

Siemens 6ES7332-7ND02-0AB0 Analog Output Module

Name: Siemens 6ES7332-7ND02-0AB0 Analog Output Module
Brand: Siemens
SKU: Siemens Analog Output Module
Availability: InStock

پارت‌نامبر: Siemens Analog Output Module

توضیحات محصول

Analog Output Module

Specification
Brand Name	Siemens	Supply Voltage Load Voltage L+: Rated value (DC) 24 V Input Current from Load Voltage L+ (without load), Max: 290 mA Power Loss, Typ: 3 W Number of Analog Outputs: 4 Voltage Output, Short-Circuit Current, Max: 40 mA Current Output, No-Load Voltage, Max: 18 V Load Impedance with Current Outputs, Max: 500 Ω Cable Length Shielded, Max: 200 m Isolation Tested with: 1,500 V DC Connection Method Required: Front Connector 20-pin



Model Number	6ES7332-7ND02-0AB0
Alternate Part Number	6ES7332-7ND02-0AB0
Condition	100% Original
Dimensions	4x11.6x12.4cm
Description	Analog Output Module
Weight	0.26 kg
Warranty	12 Months
