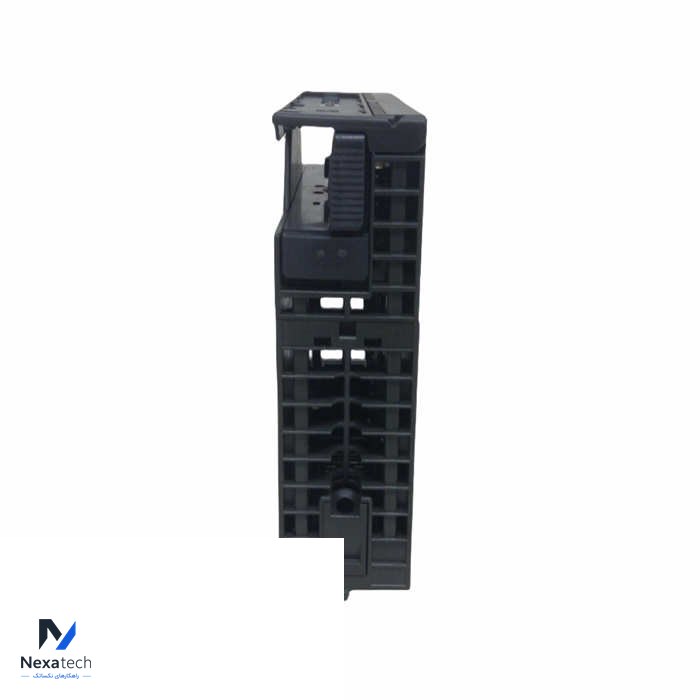

SIEMENS 6ES7322-1BF01-0AA0 Digital Output Module

Supply voltage: Rated value (DC) 24 V
Input current: From load voltage L+ (without load), max. 60 mA
Power loss: Typical 6.8 W
Number of digital outputs: 8
Switching capacity of the outputs: On lamp load, max. 10 W
Load resistance range: Lower limit 12 Ω
Switching frequency: With resistive load, max. 100 Hz
Cable length: Shielded, max. 1 000 m
Potential separation digital outputs: Between the channels, in groups of 4
Permissible potential difference: Between different circuits 75 V DC / 60 V AC
Isolation tested with: 500 V DC
Required front connector: 20-pin
