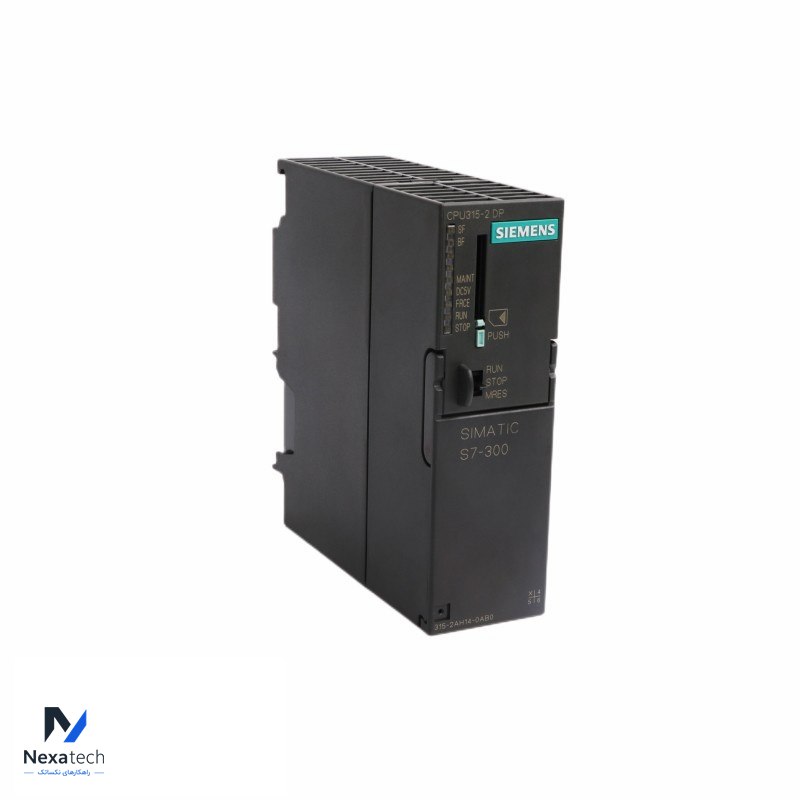

Siemens 6ES7315-2AH14-0AB0 CPU module

Specification

Brand Name

Siemens

Power Supply Voltage: Rated value 24 V
Repeat Rate: Minimum 1 s
Current Consumption: 850 mA
Inrush Current: Typical 3.5 A
Power Loss: Typical 4.5 W
Work Memory: Integrated 256 kbyte
CPU Processing Time for Bit Operations: Typical 0.05 µs
Retentive Data Area: Maximum 128 kbyte
Number of Subprocess Images: Maximum 1
Output Current of the Interface: Maximum 200 mA
Transmission Rate: Maximum 187.5 kbit/s
Ambient Temperature During Operation: 0 °C to 60 °C

Model Number

6ES7315-2AH14-0AB0

Alternate Part Number

6ES7315-2AH14-0AB0

Condition

100% Original

Dimensions

4x12.5x13cm

Description

CPU module

Weight

0.29kg

Warranty

12 Months
