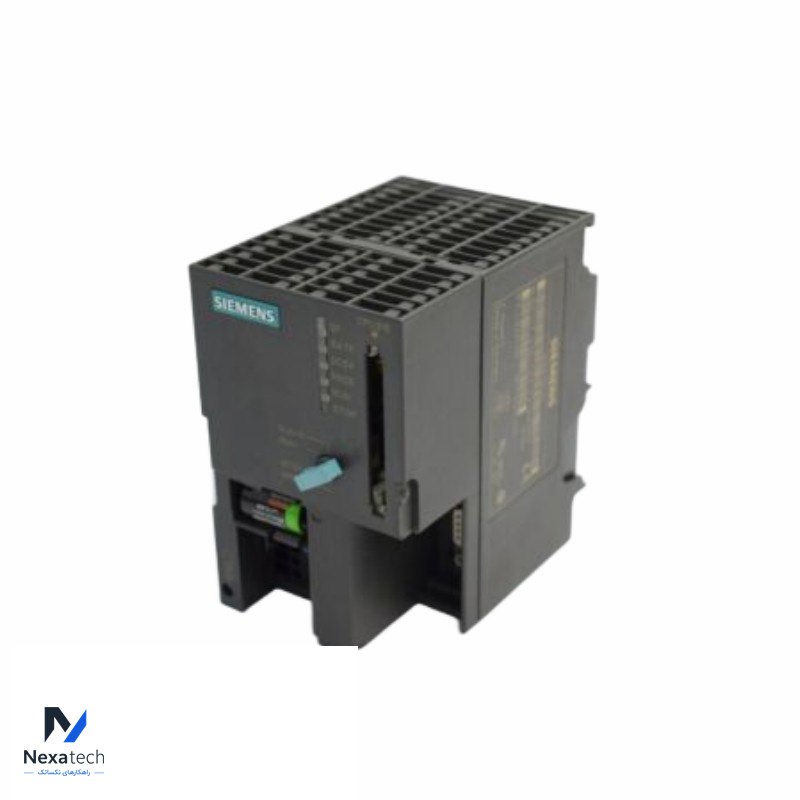

SIEMENS 6ES7315-1AF03-0AB0 CPU MODULE

The SIEMENS 6ES7315-1AF03-0AB0 is a CPU module in the SIMATIC S7-300 series, which is widely used in industrial automation for controlling and monitoring processes. Below is an overview of the technical specifications and features of the 6ES7315-1AF03-0AB0 model:

Technical Specifications:
Power Supply: Integrated 24V DC power supply.
Program Memory: 48 KB, sufficient for medium-sized automation tasks.
Data Memory: 48 KB, used for storing variables and runtime data.
I/O Modules: Can be connected with a wide variety of digital and analog input/output modules, expanding the system’s capabilities.
Programming Language: Programmable using STEP 7, Siemens' software for programming S7-300 PLCs.
Dimensions: Fits in a standard S7-300 rack, occupying one slot in the rail-mounted system.

Functionality:
Control: Manages automation tasks, such as machine control, process monitoring, and data acquisition.
Communication: Facilitates communication between different parts of the automation system (e.g., sensors, actuators, and other control modules).
Memory Management: The integrated working memory can handle the program logic and runtime data for various automation tasks, with memory expandable via memory cards.
Expansion: The CPU can be combined with various expansion modules (I/O modules, communication processors, etc.) to meet specific system requirements.

Common Questions:
What type of applications is the 6ES7315-1AF03-0AB0 suitable for?

The 6ES7315-1AF03-0AB0 is suitable for medium-sized automation tasks where moderate memory and processing power are required. It is commonly used in applications that need control over machines, processes, or plants.
Can the memory be expanded?

Yes, the 6ES7315-1AF03-0AB0  memory can be expanded by adding memory cards to accommodate larger programs or more data.
What programming tools are used?

The STEP 7 software is used for programming the CPU 315. This software supports a variety of programming languages, including Ladder Logic (LAD), Function Block Diagram (FBD), and Structured Control Language (SCL).

Does the CPU support real-time tasks?

Yes, the 6ES7315-1AF03-0AB0 can handle real-time tasks, ensuring timely execution of control commands and proper synchronization with the system’s components.
How does this CPU communicate with other devices?

It has an integrated MPI interface for basic communication and can be expanded with additional PROFIBUS or Industrial Ethernet modules for more advanced communication needs.
What is the typical use case for the 6ES7315-1AF03-0AB0?

Typical use cases include machine control, process automation, and monitoring systems, particularly in industrial environments that require high reliability and flexibility in automation.
