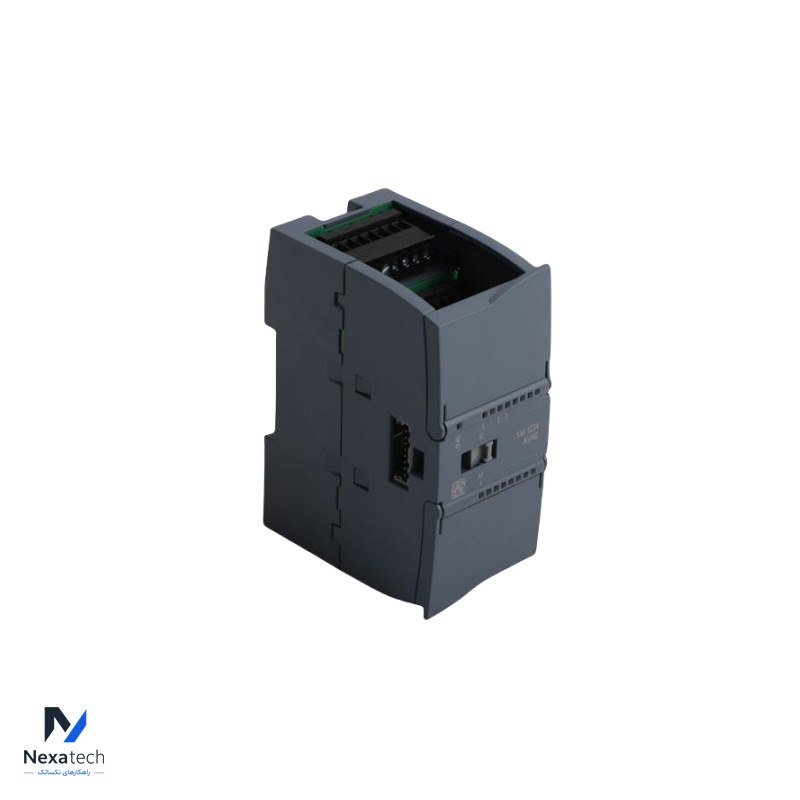

Siemens 6ES7234-4HE32-0XB0 Analog I/O Module

Name: Siemens 6ES7234-4HE32-0XB0 Analog I/O Module
Brand: Siemens
SKU: 6ES7234-4HE32-0XB0
Availability: InStock

پارت‌نامبر: 6ES7234-4HE32-0XB0

توضیحات محصول

Analog I/O Module

Specification
Brand Name	Siemens	Supply Voltage Rated Value (DC): 24 V Input Current (Typical): 60 mA Power Loss (Typ.): 2 W Number of Analog Inputs: 4 Cycle Time (All Channels): Max. 625 µs Number of Analog Outputs: 2 Load Impedance (Voltage Outputs, Min.): 1,000 Ω Cable Length (Shielded, Max.): 100 m Common Mode Voltage (Max.): 12 V IP Degree of Protection: IP20 Ambient Temperature During Operation: -20 °C to 60 °C Ambient Temperature During Storage/Transportation: -40 °C to 70 °C Relative Humidity During Operation: Max. 95%, no condensation at 25 °C



Model Number	6ES7234-4HE32-0XB0
Alternate Part Number	6ES7234-4HE32-0XB0
Condition	100% Original
Dimensions	4.5x7.4x10cm
Description	Analog I/O Module
Weight	0.16 kg
Warranty	12 Months
