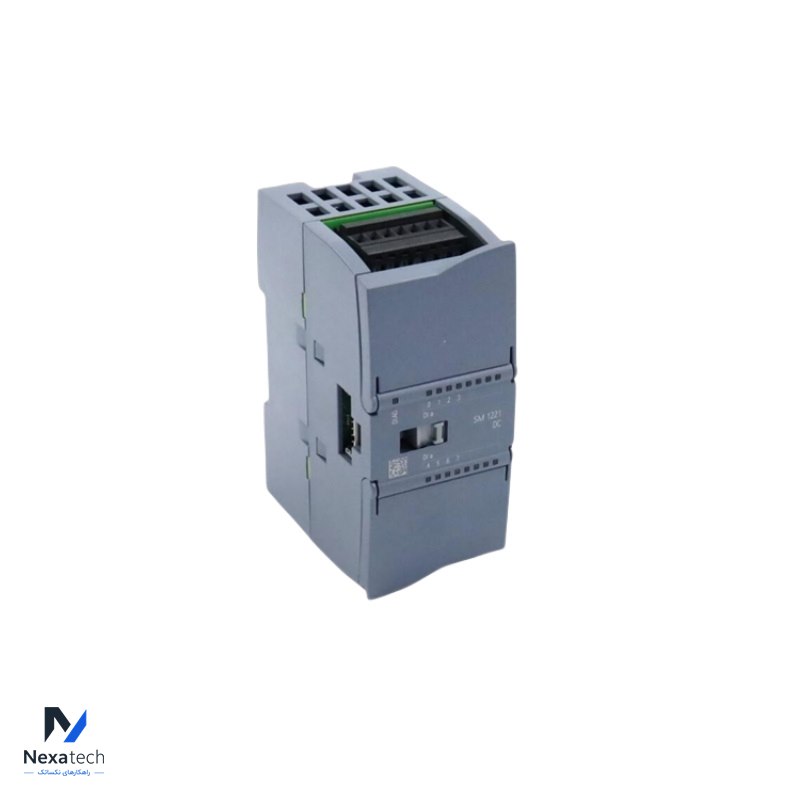

SIEMENS 6ES7221-1BF32-0XB0 Digital input module

SIEMENS 6ES7221-1BF32-0XB0 Digital Input Module Overview
Key Features
Digital Inputs: The module supports multiple digital input channels, allowing it to connect various digital devices, such as sensors and switches.
Input Voltage Range: Typically operates at 24V DC, which is a standard voltage for many industrial digital inputs.
Number of Channels: This module typically includes 16 digital input channels, facilitating the monitoring of multiple signals simultaneously.
Signal Types: Capable of handling standard digital signals, accepting both ON (high) and OFF (low) states.
Compact Design: Designed for efficient use of space in control panels and automation systems.
DIN Rail Mounting: The module is suitable for DIN rail mounting, which simplifies installation in electrical cabinets.
Fast Response Time: The module is designed for quick signal processing, which is essential for time-sensitive applications.

Technical Specifications
Part Number: 6ES7221-1BF32-0XB0
Manufacturer: SIEMENS
Module Type: Digital Input Module
Input Voltage: 24V DC
Number of Inputs: 16 digital inputs
Input Current: Generally specified in the technical documentation (e.g., typically < 7 mA per input).
Operating Temperature: Standard operating temperature range is generally between -20 °C to 60 °C; please confirm with the specific datasheet.
Connection Type: Typically features screw terminals for easy wiring.
Protocol: Fully compatible with Siemens S7 PLC systems and can be programmed using TIA Portal or STEP 7.

Common Questions About SIEMENS 6ES7221-1BF32-0XB0

What is the function of the 6ES7221-1BF32-0XB0 module?
The module serves as a digital input interface, allowing for the connection and monitoring of various digital devices, such as sensors and switches.

How many digital input channels does the module have?
The module features 16 digital input channels for monitoring multiple digital signals.

What voltage does the module operate at?
The 6ES7221-1BF32-0XB0 typically operates at 24V DC for its digital inputs.

Is this module compatible with Siemens S7 PLCs?
Yes, this module is designed for seamless integration with Siemens S7 PLC systems.

What types of devices can be connected to this module?
The module can connect to a variety of digital devices, including:
Proximity sensors
Limit switches
Push buttons

What is the typical operating temperature range?
The module generally operates within a temperature range of -20 °C to 60 °C.

How is the module mounted?
The 6ES7221-1BF32-0XB0 is designed for DIN rail mounting, facilitating easy installation in control panels.

Can the module handle electrical noise?
Yes, the module is designed with electrical isolation to protect against noise and surges, enhancing reliability.
