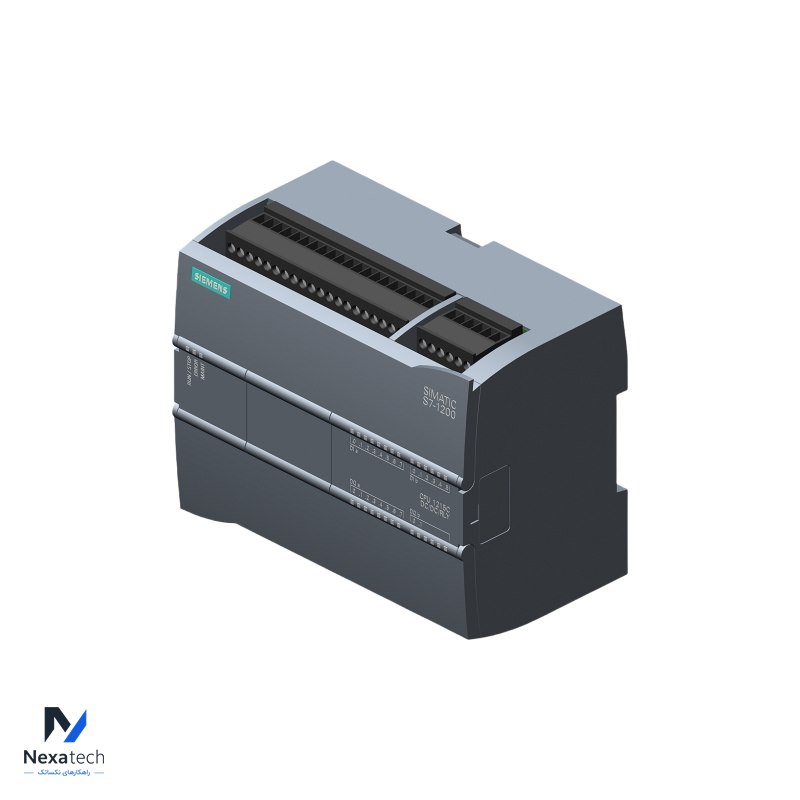

SIEMENS 6ES7215-1HG40-0XB0 CPU Module

Name: SIEMENS 6ES7215-1HG40-0XB0 CPU Module
Brand: Siemens
SKU: 6ES7215-1HG40-0XB0
Availability: InStock

پارت‌نامبر: 6ES7215-1HG40-0XB0

توضیحات محصول

CPU Module

Specification
Brand Name	SIEMENS	Current Consumption: Rated value 500 mA Current Consumption: Maximum 1 500 mA Inrush Current: Maximum 12 A at 28.8 V DC Output Current: For backplane bus (5 V DC) maximum 1 600 mA; Max. 5 V DC for SM and CM Power Loss: Typical 12 W Work Memory: Integrated 200 kbyte Retentive Data Area: Maximum 14 kbyte (including timers, counters, flags) Local Data: Per priority class maximum 16 kbyte Backup Time: Typical 480 h Number of Digital Inputs: 14 Cable Length: Shielded maximum 500 m Ambient Temperature During Operation: -20 °C to 60 °C



Model Number	6ES7215-1HG40-0XB0
Alternate Part Number	6ES7215-1HG40-0XB0
Condition	100% Original
Dimensions	13x10x7.5cm
Description	CPU Module
Weight	0.44kg
Warranty	12 Months
