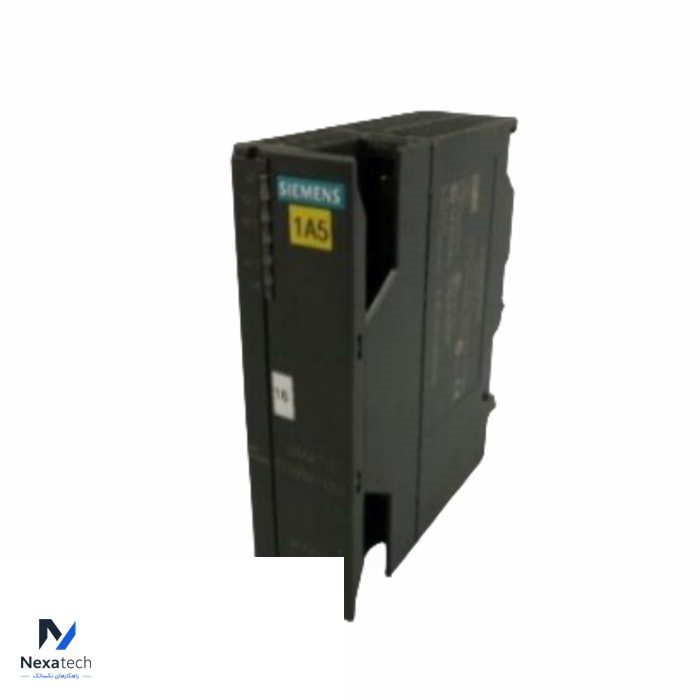

SIEMENS 6ES7153-2BA82-0XB0 Interface Module
توضیحات محصول
مشخصات فنی
| Specification | |
| Brand Name | SIEMENS |
| Model Number | 6ES7153-2BA82-0XB0 |
| Alternate Part Number | 6ES7153-2BA82-0XB0 |
| Condition | 100% Original |
| Dimensions | 4x11.5x12.5cm |
| Description | Interface Module |
| Weight | 0.24kg |
| Warranty | 12 Months |
Key Features
Interface Module: The 6ES7153-2BA82-0XB0 is an interface module for the SIMATIC DP (Distributed Peripheral) system, facilitating communication between various components.
Connection Types: Supports connections between DP (Distributed Processing) and PA (Process Automation) links.
Extended Temperature Range: Designed to operate in extended temperature conditions, making it suitable for harsh industrial environments.
Redundancy Capability: Offers redundancy features for enhanced reliability, particularly important in critical applications.
Timestamping: Supports timestamping for accurate data logging and event tracking.
Isochronous Mode: Capable of operating in isochronous mode, ensuring synchronized operation across devices.
Slave Initiative: Enables Slave Initiative for Drive ES (Electronic System) and Switch ES, enhancing operational flexibility.
Expanded Quantity Structure: Supports an expanded quantity structure for HART (Highway Addressable Remote Transducer) auxiliary variables.
Module Support: Capable of operating with up to 12 S7-300 modules, allowing for scalable configurations.
Channel Capacity: Supports the operation of 64-channel modules with a maximum of 32 signals per slot.
Technical Specifications
Part Number: 6ES7153-2BA82-0XB0
Manufacturer: SIEMENS
Module Type: Interface Module for SIMATIC DP
Number of Modules Supported: Up to 12 S7-300 modules
Temperature Range: Extended operating temperature range
Redundancy: Yes
Timestamping: Yes
Isochronous Mode: Yes
HART Support: Yes
Channel Support: 64-channel modules, 32 signals per slot
Weight: Typically around 500g (may vary, check specific documentation).
Common Questions About SIEMENS 6ES7153-2BA82-0XB0 Interface Module
What is the primary function of the 6ES7153-2BA82-0XB0 module?
It serves as an interface module for the SIMATIC DP system, facilitating communication between various components and modules.
How many S7-300 modules can be connected?
Up to 12 S7-300 modules can be connected to this interface module.
Is this module suitable for harsh environments?
Yes, it is designed to operate in extended temperature ranges, making it suitable for challenging industrial conditions.
Does the module support redundancy?
Yes, it features redundancy capabilities to enhance system reliability.
What is the maximum number of signals per slot?
The module supports 32 signals per slot, accommodating high-density configurations.
Can this module be used for timestamping data?
Yes, it includes timestamping features for accurate event tracking and data logging.
What types of applications is this module suitable for?
It is ideal for industrial automation, process automation, and any application requiring robust data communication.
Where can I find the technical documentation for this module?
Technical manuals and datasheets are available on the Siemens website or through authorized distributors.
How is the module mounted?
The 6ES7153-2BA82-0XB0 module is designed for DIN rail mounting, facilitating easy integration into control cabinets.
