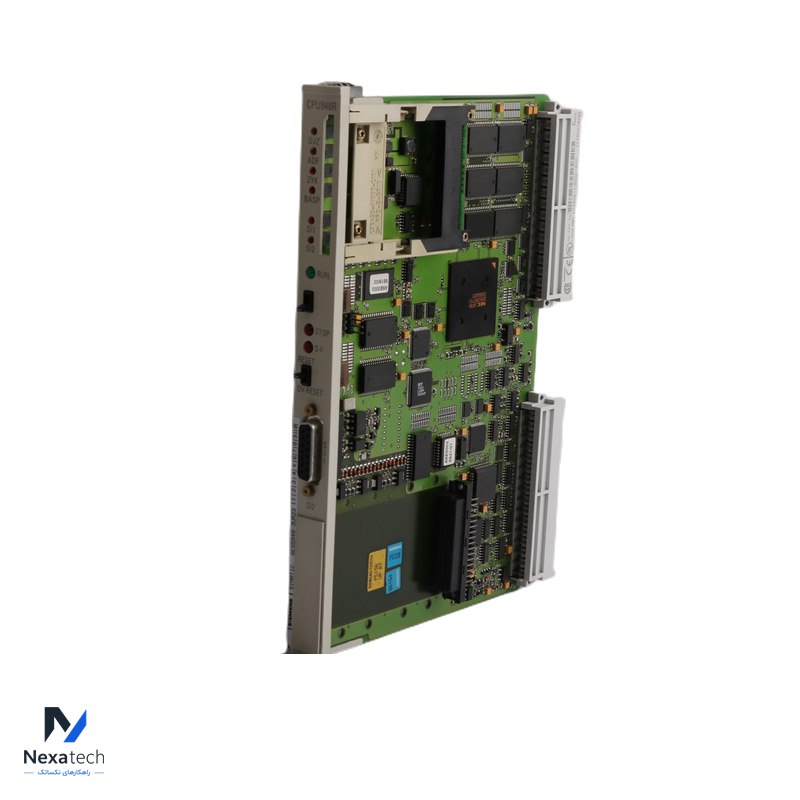

SIEMENS 6ES5948-3UR23 CPU948R Central Processing Unit

The SIEMENS 6ES5948-3UR23 is a CPU948R Central Processing Unit designed for use in the SIMATIC S5 series of programmable logic controllers (PLCs). Below is an overview of , specifications, and applications:

Specifications:
Program Memory: Up to 128 KB, depending on configuration.
Data Memory: Allows storage for variable data, necessary for control logic and monitoring.
Communication Interfaces:
Supports MPI (Multi-Point Interface) for communication with other Siemens devices and systems.
Additional communication options may include PROFIBUS for connecting to distributed I/O devices.
Operating Voltage: Usually operates at a standard industrial voltage (e.g., 24 V DC).

Functionality:
Control Tasks: Manages input/output operations, executes control logic, and performs data processing for various industrial applications.
Data Communication: Facilitates communication between different parts of the automation system, including sensors, actuators, and other control modules.
Modular Design: Can be integrated with various I/O modules, communication processors, and other expansion modules to tailor the system to specific application needs.

Common Questions:
What types of applications is the CPU948R suitable for?

The CPU948R is ideal for medium to complex automation tasks in manufacturing, process control, and other industrial applications.
Can the memory be expanded?

Memory expansion options may be available through specific configurations, depending on the system's requirements.
What programming tools are used?

The CPU948R is programmed using STEP 5, Siemens' software for S5 PLC programming, supporting languages such as Ladder Logic (LAD) and Function Block Diagram (FBD).
Does the CPU support real-time tasks?

Yes, it is designed to handle real-time control tasks efficiently.
How does this CPU communicate with other devices?

It utilizes the MPI interface and can also be configured for PROFIBUS communication, allowing it to connect with various Siemens devices and networks.
