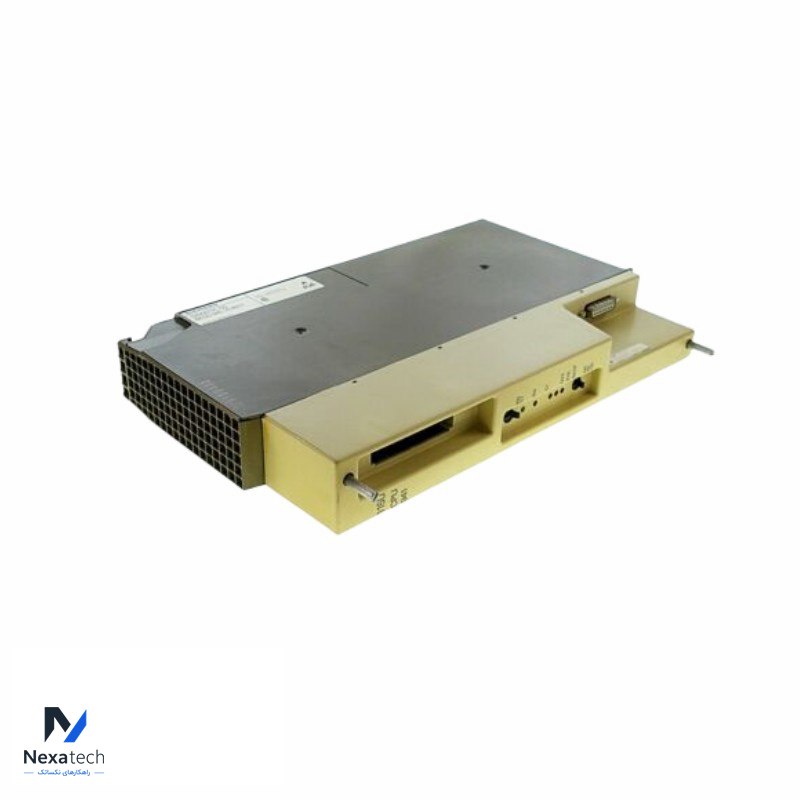

Siemens 6ES5941-7UB11 Central processing unit

The Siemens 6ES5941-7UB11 is a SIMATIC S5 CPU 941 Central Processing Unit (CPU) used in Siemens S5 automation systems, which were widely deployed in industrial automation for controlling and monitoring processes. This CPU serves as the central controller for various input/output (I/O) modules and handles processing tasks based on the user program.

Key Features of Siemens 6ES5941-7UB11:
CPU Type: Central Processing Unit (CPU 941) for the SIMATIC S5 series.
Memory: The CPU 941 typically has user memory capacity for program storage and data management.
Communication: Supports basic communication functions through standard S5 interfaces.
Processing Speed: Although an older model, the CPU 941 is sufficient for handling basic logic operations, timers, counters, and controlling inputs and outputs in smaller systems.
Application: Primarily used in small to medium-sized industrial applications such as machine automation, manufacturing, and process control.
Expansion Capability: Can be integrated with I/O modules and other peripheral devices within the SIMATIC S5 system architecture.

Common Questions About Siemens 6ES5941-7UB11 (CPU 941):
What kind of tasks can the Siemens CPU 941 handle? Answer: The CPU 941 is used for executing logic control in small to medium-sized industrial automation tasks. It can handle simple control operations such as starting and stopping machinery, timing sequences, managing inputs/outputs, and communication with other devices.

Is the Siemens 6ES5941-7UB11 still supported by Siemens? Answer: The SIMATIC S5 series has been discontinued by Siemens, and its support has gradually phased out in favor of newer platforms like the SIMATIC S7 series. However, many third-party vendors still offer maintenance, repair services, and spare parts for these legacy systems.

What programming software is used for the CPU 941? Answer: The CPU 941 is programmed using STEP 5 software, which was specifically designed for Siemens S5 PLC systems. The programming language includes ladder logic (LAD), statement list (STL), and function block diagram (FBD).

How is the CPU 941 connected to other components in the SIMATIC S5 system? Answer: The CPU is connected to other components via a backplane bus in the PLC rack. It communicates with I/O modules, power supply units, and other expansion modules through this bus to control industrial processes.

What is the memory capacity of the CPU 941? Answer: The exact memory capacity of the CPU 941 depends on its configuration. However, in general, older S5 CPUs like the 941 have limited memory compared to modern CPUs, typically enough to handle the control logic for small to medium automation tasks.

Can the CPU 941 be integrated into modern control systems? Answer: While the CPU 941 can be integrated into legacy systems, adapting it to modern automation platforms may require additional hardware or software interfaces to bridge communication gaps between old and new systems.
