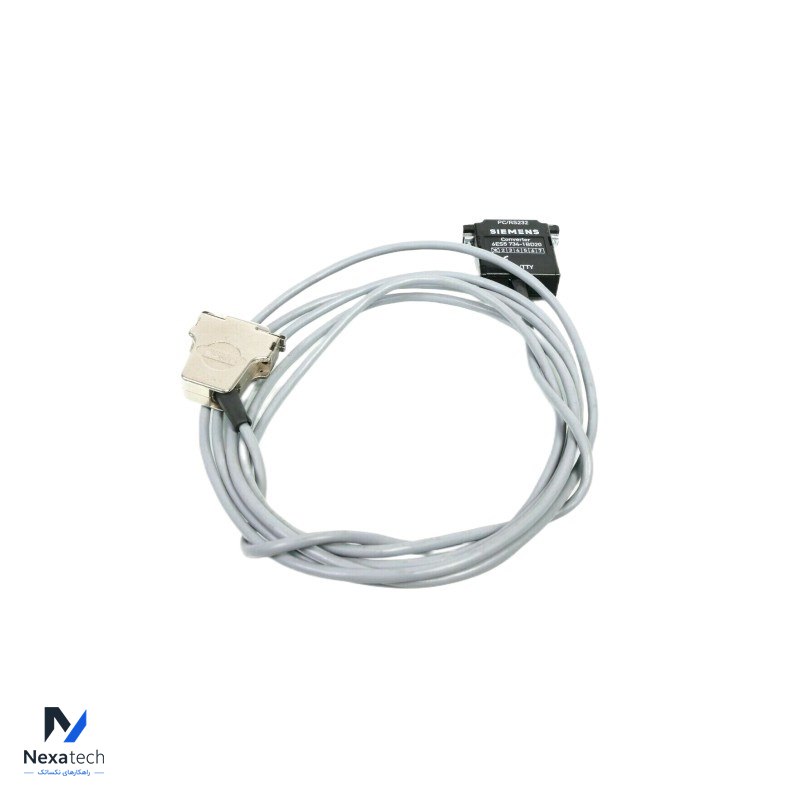

Siemens 6ES5734-1BD20 Plug-in cable

The Siemens 6ES5734-1BD20 is a Plug-in Cable that is part of the SIMATIC S5 series, specifically designed for connecting a SIMATIC S5 Programmable Logic Controller (PLC) to a PC. Below are the key details and common questions about this plug-in cable:

Key Features:
Connection Type: The cable connects a 15-pole (AG) interface on the SIMATIC S5 PLC to a 25-pole (PC) interface.

Cable Length: The cable is 3.2 meters long, providing sufficient length for flexible connection between devices in an industrial control cabinet or control room.

Use Case: Typically used for communication between the PLC and a computer for programming, diagnostics, or data exchange. This can include downloading PLC programs or monitoring system operations from a PC using Siemens programming software like STEP 5.

Common Questions:
1. What is the function of the Siemens 6ES5734-1BD20 cable?
Answer: The cable is used to connect a SIMATIC S5 PLC to a PC for purposes such as programming, monitoring, diagnostics, and communication. It allows data to be transferred between the PLC and the PC, enabling users to program or troubleshoot the system via Siemens software.

2. What are the connector types on the Siemens 6ES5734-1BD20 cable?
Answer:

One end of the cable has a 15-pole connector that connects to the SIMATIC S5 PLC (AG).
The other end has a 25-pole connector that connects to a PC, typically through a serial port.
3. What software is typically used with the 6ES5734-1BD20 cable?
Answer: The cable is commonly used with STEP 5 programming software, which is used to configure, program, and diagnose SIMATIC S5 PLC systems.

4. Can this cable be used with newer Siemens PLCs?
Answer: The 6ES5734-1BD20 is specifically designed for use with SIMATIC S5 systems, which are older PLC models. It is not directly compatible with newer SIMATIC S7 systems or the TIA Portal environment, which use different interfaces and cabling solutions.

5. What is the purpose of the 15-pole to 25-pole connection?
Answer: The 15-pole (AG) connection interfaces with the SIMATIC S5 PLC, while the 25-pole (PC) connection interfaces with a serial port on a PC. This allows the PLC to be programmed or monitored from the PC.

6. How long is the cable, and is it sufficient for most industrial applications?
Answer: The cable is 3.2 meters long, which is generally sufficient for most control cabinet installations where the PLC and PC are in close proximity. If longer distances are required, Siemens may offer extension solutions or longer cables.
