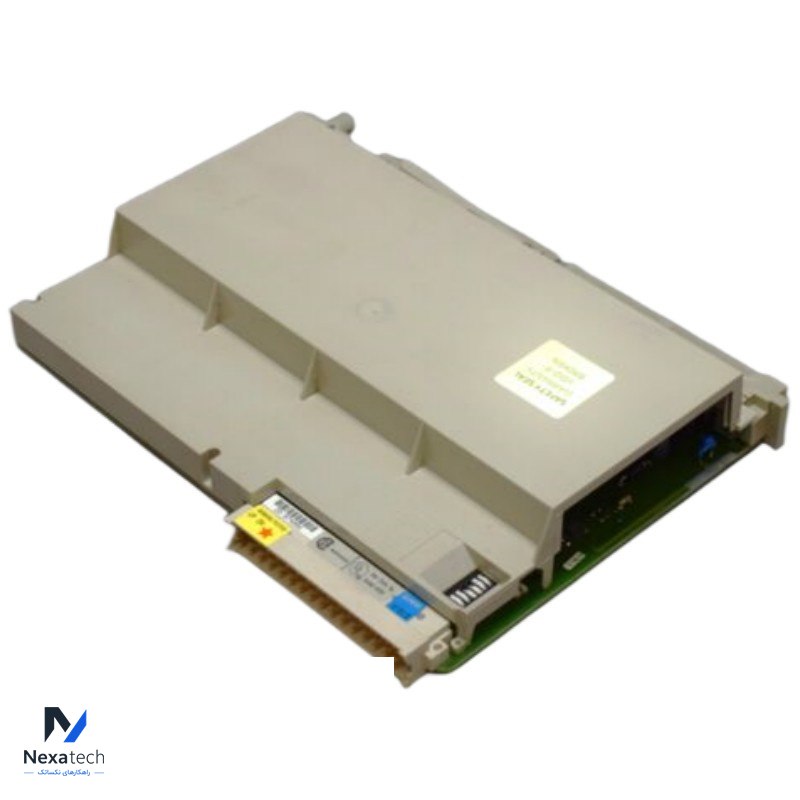

Name: Siemens 6ES5454-4UA13 DIGITAL OUTPUT MODULE
Brand: Siemens
SKU: 6ES5454-4UA13
Availability: InStock

Specification
Brand Name	SIEMENS
Model Number	6ES5454-4UA13
Alternate Part Number	6ES5454-4UA13
Condition	100% Original
Dimensions	25.5x3.9x19.5cm
Description	DIGITAL OUTPUT MODULE
Weight	0.48kg
Warranty	12 Months

The Siemens 6ES5454-4UA13 Digital Output Module is part of the SIMATIC S5 series, specifically designed for industrial automation. It is a compact digital output module that provides reliable control and switching capabilities for external devices. This module is widely used in control applications where digital signals are needed to activate external components like relays, solenoids, or motors.

Product Specifications:
Model: 6ES5454-4UA13
Series: SIMATIC S5
Function: Digital output module
Number of Outputs: 16 digital outputs
Output Voltage: 24V DC
Output Current: 2A per channel
Switching Type: Floating output
Configuration: Compact version for space-saving installations
Power Supply Voltage: 24V DC
Output Protection: Short-circuit protection on each output
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Mounting Type: DIN rail or panel mounting
LED Indicators: Status indicators for each output channel
Compatibility: Works with SIMATIC S5 control systems

Common Questions:
Question: What is the function of the 6ES5454-4UA13 digital output module?
Answer: The 6ES5454-4UA13 is a digital output module designed to control and switch external devices by providing 24V DC signals to actuate components like motors, relays, or lights in industrial automation systems.

Question: How many output channels does this module provide?
Answer: The module offers 16 digital output channels, each capable of delivering 24V DC and up to 2A of current.

Question: Is the module protected against short circuits?
Answer: Yes, the module has built-in short-circuit protection on each output channel to ensure reliable operation and prevent damage to the system.

Question: What is meant by "floating" outputs?
Answer: Floating outputs mean that the outputs are isolated from the system ground, providing flexibility in wiring and reducing the risk of ground loops, which is beneficial for applications that require electrical isolation between components.

Question: What is the power supply voltage for this module?
Answer: The 6ES5454-4UA13 operates on a 24V DC power supply, which is standard in most industrial control environments.

Question: Can this module handle inductive loads, such as motors or solenoids?
Answer: Yes, the module can control inductive loads like motors and solenoids. However, external protection (such as flyback diodes) may be recommended to protect against voltage spikes caused by inductive loads.

Question: What are the LED indicators used for?
Answer: Each output channel is equipped with an LED indicator to show the operational status of the output, making it easier to troubleshoot and monitor the system.

Question: Is the module compatible with the SIMATIC S7 series?
Answer: The 6ES5454-4UA13 is designed for the SIMATIC S5 series. For use with SIMATIC S7 systems, additional adapters or communication interfaces may be required for integration.

Question: What type of mounting is supported by this module?
Answer: The module can be mounted on a standard DIN rail or panel, making it easy to install in various industrial control cabinets.
