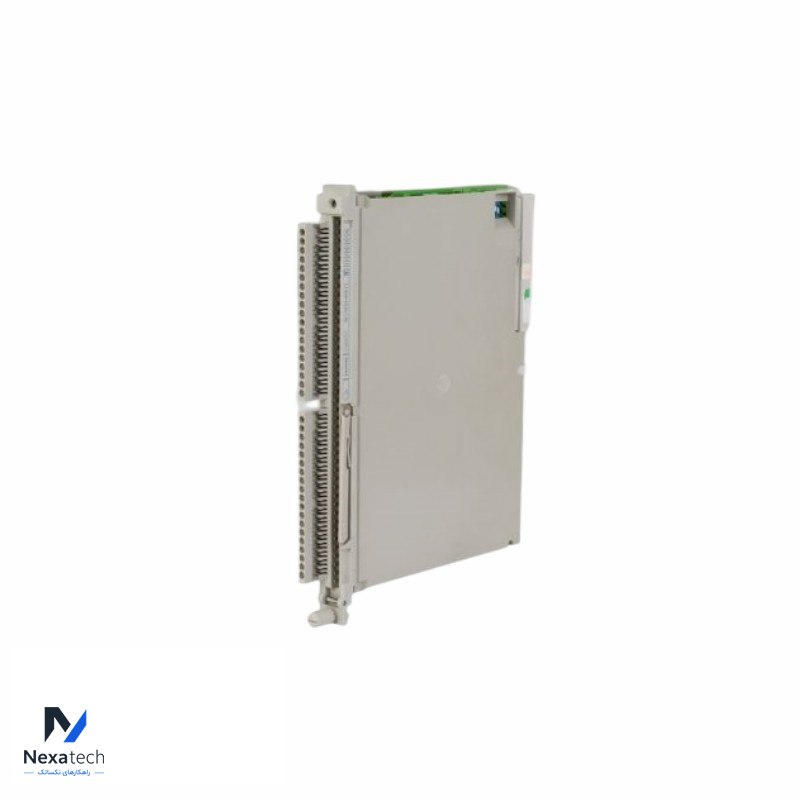

SIEMENS 6ES5430-4UA12 Digital Input Module

The SIEMENS 6ES5430-4UA12 is a Digital Input Module designed for the SIMATIC S5 series, specifically compatible with the S5-135 and S5-155 PLCs. This module is essential for interfacing digital signals from various sensors and devices to the PLC for processing.

Specifications:
Number of Inputs: Usually supports up to 16 digital inputs, depending on configuration.
Input Voltage: Compatible with various input voltage levels, commonly 24 V DC.
Signal Type: Accepts both normally open (NO) and normally closed (NC) contacts, enabling flexibility in sensor integration.
Isolation: Provides electrical isolation between input channels and the PLC to protect against noise and surges.

Functionality:
Signal Monitoring: Monitors the status of digital signals (on/off) from connected devices such as switches, relays, and sensors.
Data Communication: Sends the status of digital inputs to the PLC for processing, allowing for decision-making and control actions based on the input conditions.
Diagnostic Features: May include built-in diagnostic capabilities to monitor input status and detect faults.

Common Questions:
How many inputs does the 6ES5430-4UA12 module support?

It typically supports up to 16 digital inputs, but this may vary based on specific configurations.
What types of devices can be connected to this module?

It can interface with various digital devices such as sensors, switches, and relays that operate within the compatible voltage range.
Is installation straightforward?

Installation usually involves mounting the module in the PLC rack and connecting the input devices according to the wiring diagrams provided in the user manual.
What programming is required to use this module?

The module is programmed using STEP 5, the Siemens software for programming S5 PLCs, where the digital inputs can be configured for specific applications.
What are the environmental considerations?

The module should be installed in a controlled environment to protect it from extreme temperatures, humidity, and dust.
